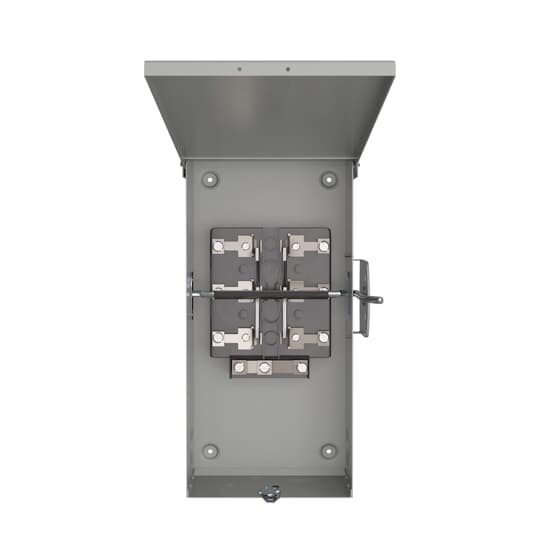

The GE TGN3322R is a general duty non-fusible safety switch designed for residential and light commercial applications. This 3 pole switch has a current rating of 60 Amp and is suitable for 240 VAC systems. It features a NEMA 3R enclosure, making it suitable for outdoor use by providing protection against rain, sleet, and ice. The switch has a direct drive, quick-make, quick-break mechanism for positive on/off indication and an integral cover interlock for safety. It is UL Listed and CSA Certified, and can be used as service entrance equipment when installed according to the NEC.
Features
- Type: General Duty, Non-Fusible
- Amperage Rating: 60 A
- Voltage Rating: 240 VAC
- Number of Poles: 3
- Number of Wires: 3
- Enclosure: NEMA 3R (Outdoor)
- Mechanism: Direct drive, Quick-make, Quick-break
- Mounting Type: Surface
- Cover Interlock: Integral
- Visible Blade: Yes
- Short Circuit Current Rating: 10 kA (standard), 100 kA (with Class R fuses and fuse kits)
- Compliance: UL Listed (UL 98), cUL Listed, CSA Certified (CSA C22.2 No 4-04)
