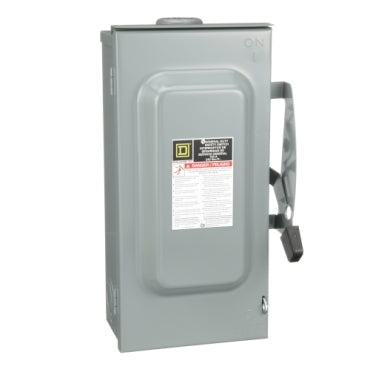

The Square D D223NRB is afusible safety switch rated for 100A and 240VAC operation, featuring two poles and a factory-installed neutral for 3-wire residential/commercial applications. Its NEMA 3R galvannealed steel enclosure provides rainproof and sleet/ice-resistant protection suitable for indoor/outdoor installation. Designed for general-duty disconnection of lighting, air conditioning, and appliances, it accepts Class H, K, or R cartridge fuses for over-current and short-circuit protection, with a maximum 100kA short-circuit rating when properly fused. The switch includes mechanical screw terminal lugs compatible with #14 to #1/0 AWG copper or #12 to #1/0 AWG aluminum conductors, supporting surface mounting with a single-throw lever actuator.
Features
- Electrical Rating: 100A, 240VAC
- Pole Configuration: 2 poles + factory-installed neutral
- Enclosure: NEMA 3R galvannealed steel (rainproof, corrosion-resistant)
- Fuse Compatibility: Class H, K, or R cartridge fuses
- Short-Circuit Rating: 100kA interruption (when properly fused)
- Conductor Range: #14–1/0 AWG copper / #12–1/0 AWG aluminum
- Termination: Mechanical screw terminal lugs
- Mounting: Surface mount design
- Actuation: Single-throw lever operation
- Applications: Lighting, appliances, HVAC disconnection
