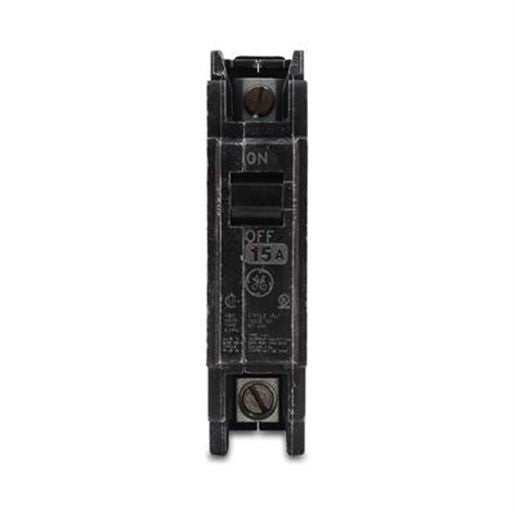

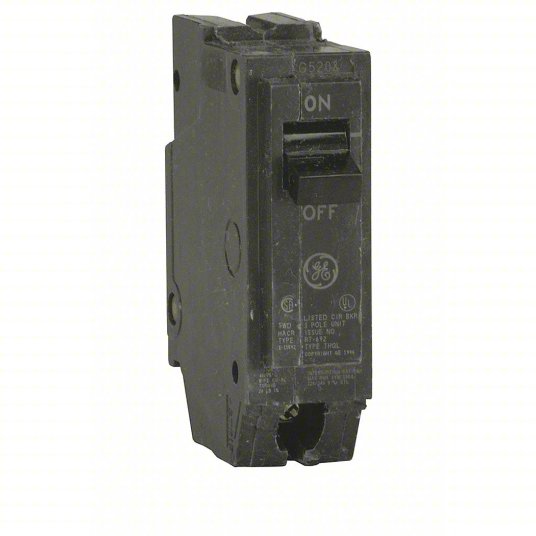

GE ABB THQC1115WL Circuit Breaker | 15A, 1 Pole, 120/240V

The GE ABB THQC1115WL is a 1-pole, 15-ampere, thermal-magnetic circuit breaker that is unique for its versatile mounting options (both surface/DIN rail) and lug-to-lug configuration. Unlike the common bolt-on "THQB" series or plug-in "THQL" series, the "THQC" variation uses line and load lugs for wired feed-thru connections, making it suitable for panelboards that require direct wiring rather than bus bar connection.

Features

• Mounting Versatility: Can be installed via 35mm DIN rail or surface-mounted, offering flexibility in panel design.
  Connection Type: Features feed-thru (lug-to-lug) connections for both line and load sides, accepting #14 to #8 AWG copper wire or #12 to #8 AWG aluminum wire.
  Protection Type: Utilizes a thermal-magnetic trip mechanism, providing both long-time (overload) and instantaneous (short-circuit) protection.
  Interrupting Rating (AIC): A standard interrupting capacity of 10 kA (10,000 Amps) at 120/240 VAC.
  Voltage Rating: Rated for 120/240 VAC systems.
  Special Markings: HACR rated (suitable for heating, air conditioning, and refrigeration equipment) and SWD rated (suitable for switching 120 VAC fluorescent lighting loads).
  Compact Design: Part of the Q-Line family, it maintains a space-saving 1-inch width.
  Certifications: UL Listed (UL 489 standard) and CSA Certified.
  Safety & Reliability: Features a quick-make/quick-break mechanism and non-interchangeable trip unit for consistent performance and safety.
