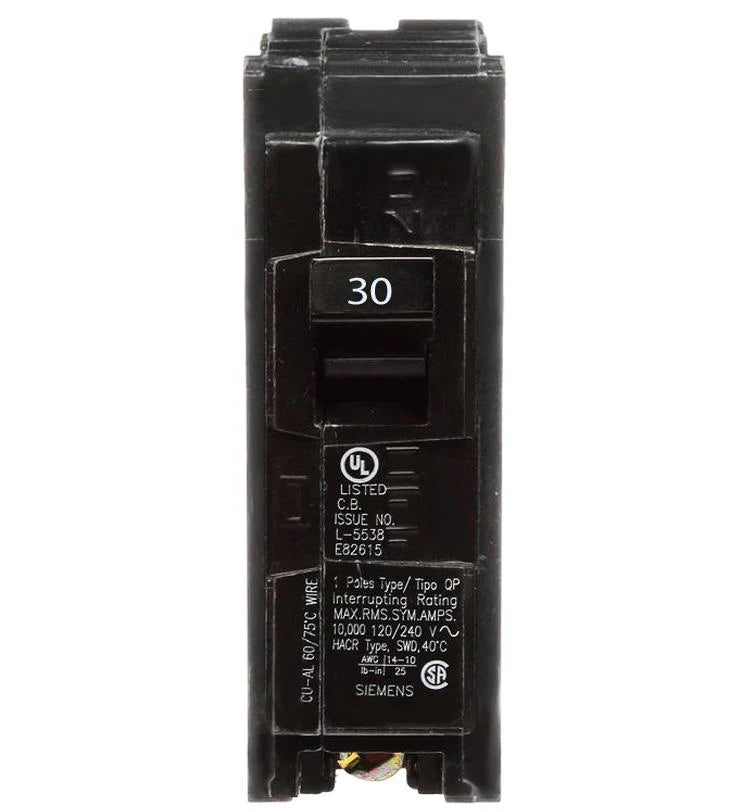

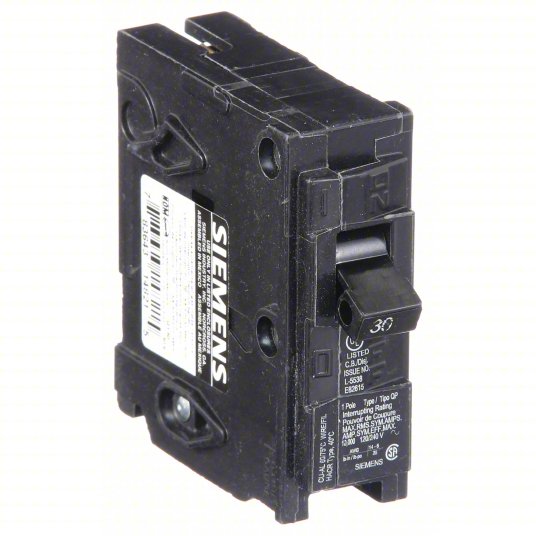

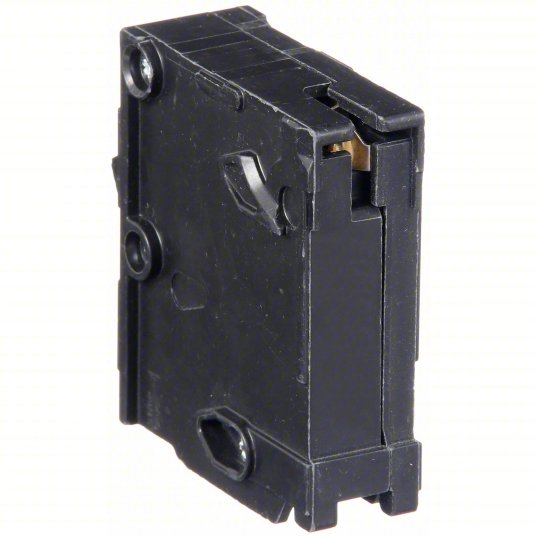

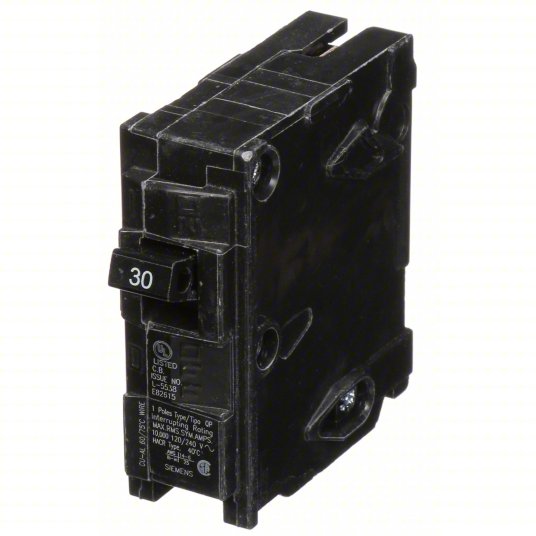

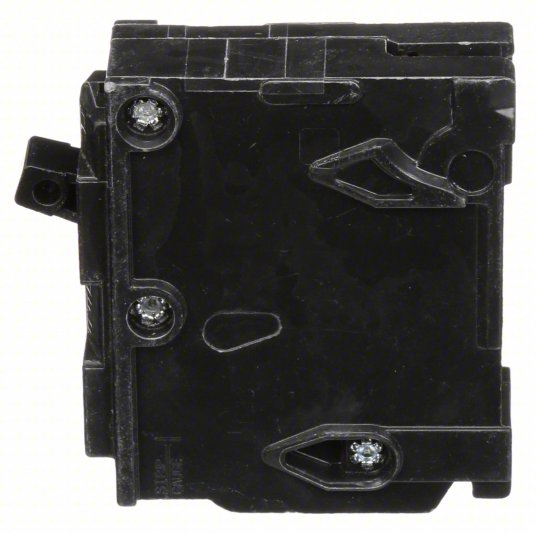

The Siemens Q130 is a 30-amp, single-pole thermal magnetic circuit breaker designed for residential and light commercial use, operating at 120V AC with a 10,000 AIC interrupting capacity. It features a plug-in design for easy installation and is compatible with Siemens EQ, EQL, SEQ, EQG, PL, and ES series load centers. Equipped with Insta-Wire terminals for fast and secure connections, it supports 14–6 AWG copper or aluminum conductors. The Q130 is UL listed, HACR rated for HVAC applications, and provides reliable protection against overloads and short circuits in lighting and general-purpose branch circuits.
- Type: Thermal Magnetic Circuit Breaker
- Amperage: 30 A
- Poles: 1
- Voltage Rating: 120 VAC
- Interrupting Rating: 10,000 AIC (Ampere Interrupting Capacity)
- Mounting: Plug-In
- Trip Type: Thermal Magnetic (for overload and short-circuit protection)
- Dimensions: Approximately 3” (H) x 1” (W) x 3” (D)
- Weight: Approximately 0.265 lb
DISCLAIMER:
The photo and information provided are not guaranteed. It’s important to conduct your own research and/or consult with an electrician to ensure compatibility.
