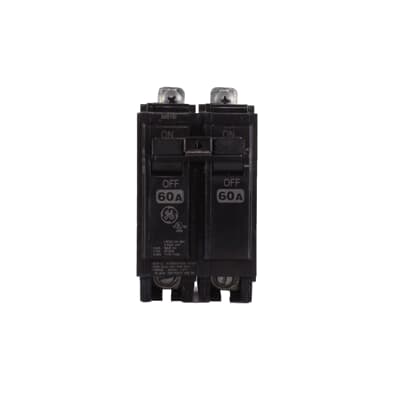

GE ABB - Bolt On Circuit Breaker - 2 Pole 120/240V AC - THQB2160

The GE THQB2160 is a 2-pole, bolt-on circuit breaker designed for commercial and light industrial applications. This compact, thermal-magnetic breaker provides reliable protection against overloads and short circuits in 120/240V AC systems. With a 60A current rating and 10 kA interrupting capacity, it ensures dependable performance in GE panelboards and load centers. The bolt-on design offers a secure, vibration-resistant connection to the bus bars, while the quick-make/quick-break mechanism and common trip bar enhance safety and reliability. The breaker is UL Listed and suitable for reverse feed applications.

Features

• Electrical Protection: Provides overcurrent and short circuit protection.
• Voltage Rating: Suitable for 120/240V AC systems.
• Current Rating: Features a 60A capacity.
• Number of Poles: 2-Pole configuration.
• Mounting Type: Bolt-on design for secure installation.
• Interrupting Rating: Has an interrupting capacity of 10 kA at 240V AC.
• Trip Type: Thermal Magnetic trip mechanism with Long-Time and Instantaneous (LI) functions.
• Wire Compatibility: Accepts copper and aluminum wire sizes from 8 AWG to 3 AWG.
• Safety Features: Includes quick-make/quick-break mechanisms and a common trip bar.
• Reverse Feed: Suitable for reverse feed applications.
