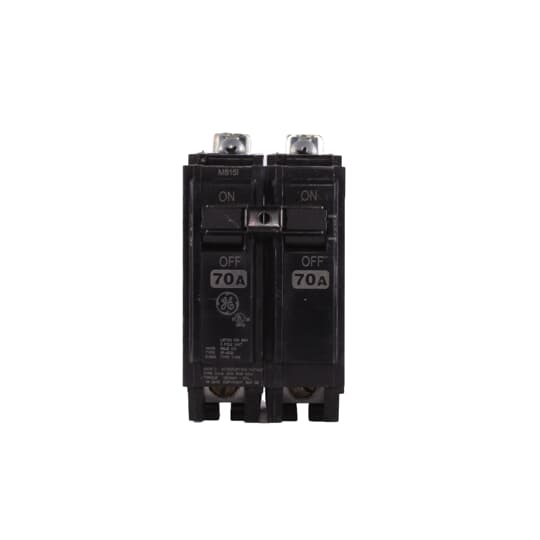

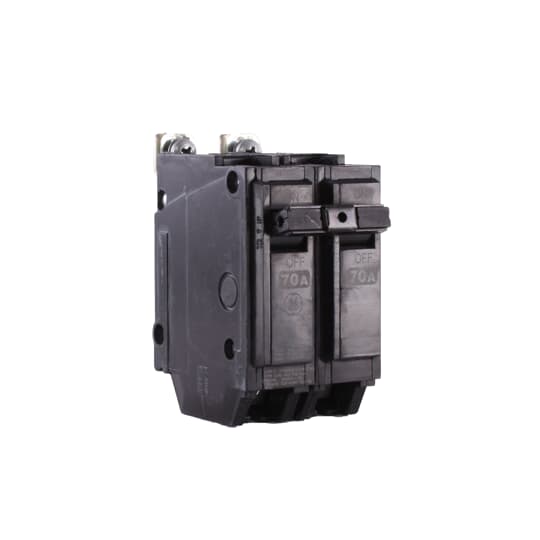

The GE bolt-on circuit breaker is a thermal-magnetic device designed for residential and commercial applications. This 2-pole breaker has a 70A current rating and is suitable for 120/240V AC systems. It offers reliable overcurrent and short circuit protection with an interrupting capacity of 10 kA. The bolt-on mounting ensures a secure connection in load centers and lighting panels. Key features include quick-make/quick-break mechanisms and a common trip bar for enhanced safety and reliability. It is also suitable for reverse feed applications.
Features
- Electrical Protection: Provides overcurrent and short circuit protection.
- Voltage Rating: Suitable for 120/240V AC systems.
- Current Rating: Features a 70A capacity.
- Number of Poles: 2-Pole configuration.
- Mounting Type: Bolt-on design for secure installation.
- Interrupting Rating: Has an interrupting capacity of 10 kA at 120/240V AC.
- Trip Type: Thermal Magnetic trip mechanism with Long-Time and Instantaneous (LI) functions.
- Wire Compatibility: Accepts copper wire sizes from 6 AWG to 1/0 AWG and aluminum wire sizes from 4 AWG to 1/0 AWG.
- Safety Features: Includes quick-make/quick-break mechanisms and a common trip bar.
- Reverse Feed: Suitable for reverse feed applications.
