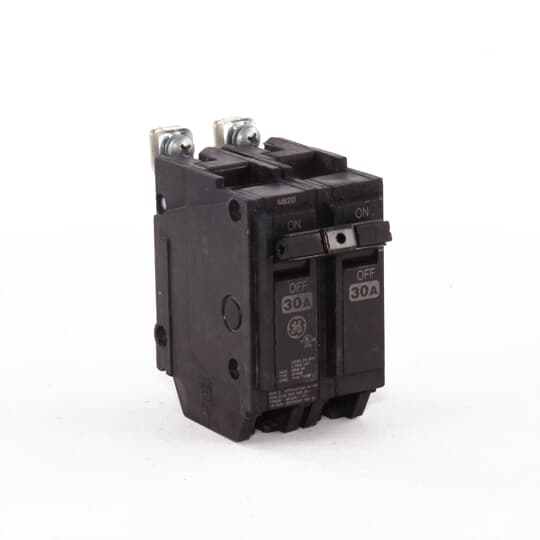

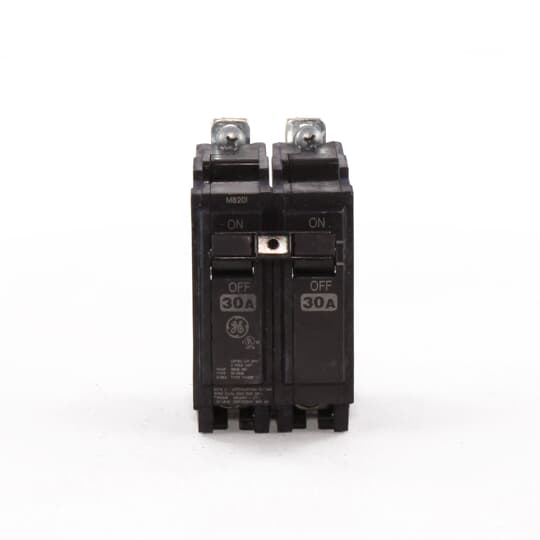

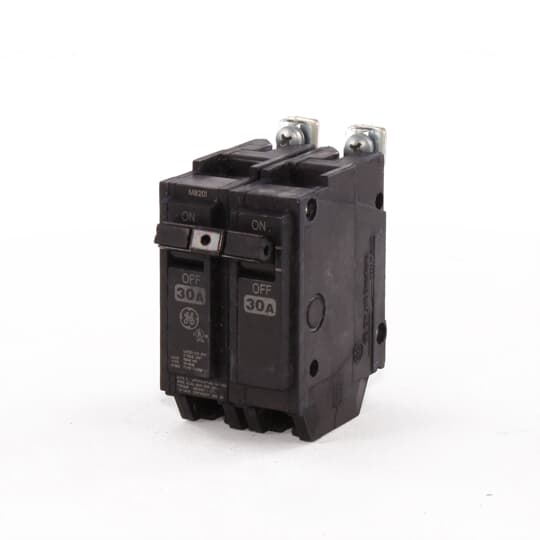

The GE bolt-on circuit breaker is a compact, thermal-magnetic device ideal for residential and commercial applications. This 2-pole breaker is rated for 30A and 120/240V AC systems. It features a high interrupting capacity of 22 kA, ensuring reliable protection against overcurrents and short circuits. The bolt-on mounting provides a secure connection to bus bars in load centers. Key features include quick-make/quick-break mechanisms and a common trip bar for enhanced safety and performance. It is also suitable for reverse feed applications.
Features
- Electrical Protection: Provides overcurrent and short circuit protection.
- Voltage Rating: Suitable for 120/240V AC systems.
- Current Rating: Features a 30A capacity.
- Number of Poles: 2-Pole configuration.
- Mounting Type: Bolt-on design for secure installation.
- Interrupting Rating: Has a high interrupting capacity of 22 kA at 120 VAC and 120/240 VAC.
- Trip Type: Thermal Magnetic trip mechanism with Long-Time and Instantaneous (LI) functions.
- Wire Compatibility: Accepts copper wire sizes from 14 to 8 AWG and aluminum wire sizes from 12 to 8 AWG.
- Safety Features: Includes quick-make/quick-break mechanisms and a common trip bar.
- Reverse Feed: Suitable for reverse feed applications.
