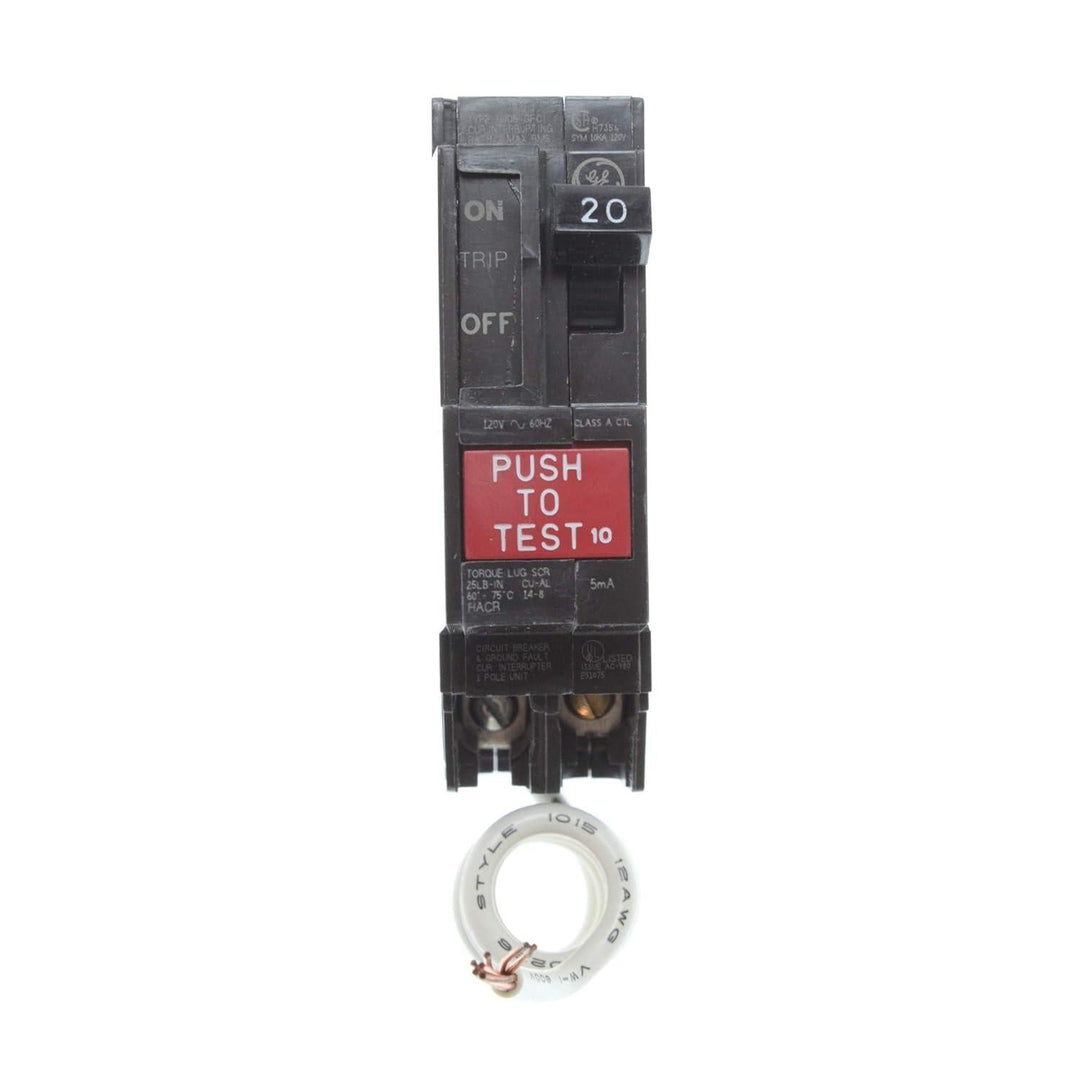

THQB1120GF - Molded Case Circuit Breaker
The THQB1120GF is a molded case circuit breaker designed for residential and commercial applications. It features a 20 A amperage rating and is available in a 2-pole configuration for versatile use. This breaker offers reliable protection with a 10 KAIC interrupting rating at 120/240 Vac, ensuring safe and secure operation in electrical systems. The THQB1120GF also has a fixed long-time trip setting and a fixed instantaneous trip function, which provide added safety for electrical circuits. Designed to meet rigorous standards, it is ideal for use in both standard and reverse-feed applications, offering protection against overloads and short circuits. The breaker’s thermal-magnetic mechanism ensures dependable operation in various environments, making it a solid choice for different electrical setups.
Features
- Amperage: 20 A
- Poles: 2
- System Voltage: 120/240 Vac
- Interrupting Rating: 10 KAIC at 120/240 Vac
- Trip Function: LI (Long-Time and Instantaneous)
- Long-Time Trip Setting: Fixed
- Instantaneous Trip Setting: Fixed
- Suitable for Reverse Feed: Yes
- Wire Range (Cu/Al): 14-8 AWG copper / 12-8 AWG aluminum
- Special Markings: HACR
- Protective Relays: No
- Current Metering: No
Specifications
| Part Number: | THQB1120GF |
| Manufacturer: | General Electric |
| Family: | Q-Line |
| Pole: | 1 |
| Amp: | 20 |
| Volt: | 120 |
| Phase: | 1 |
| Category: | Molded Case Circuit Breakers / 1-Pole |
| Connection: | Bolt-On |
| Type: | THQB |
| Functions: | NGC |
| Protection: | Thermal Magnetic |
| AIC Ratings: | 10kA@120V |
