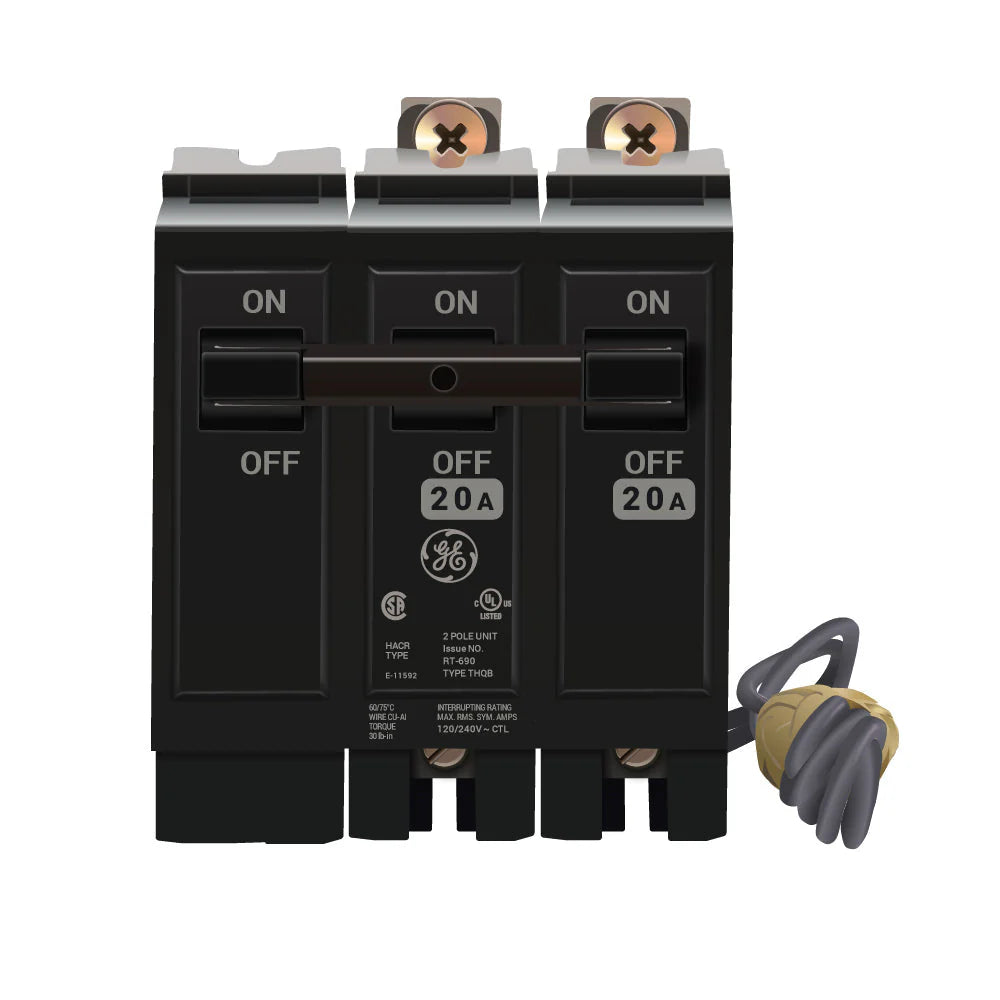

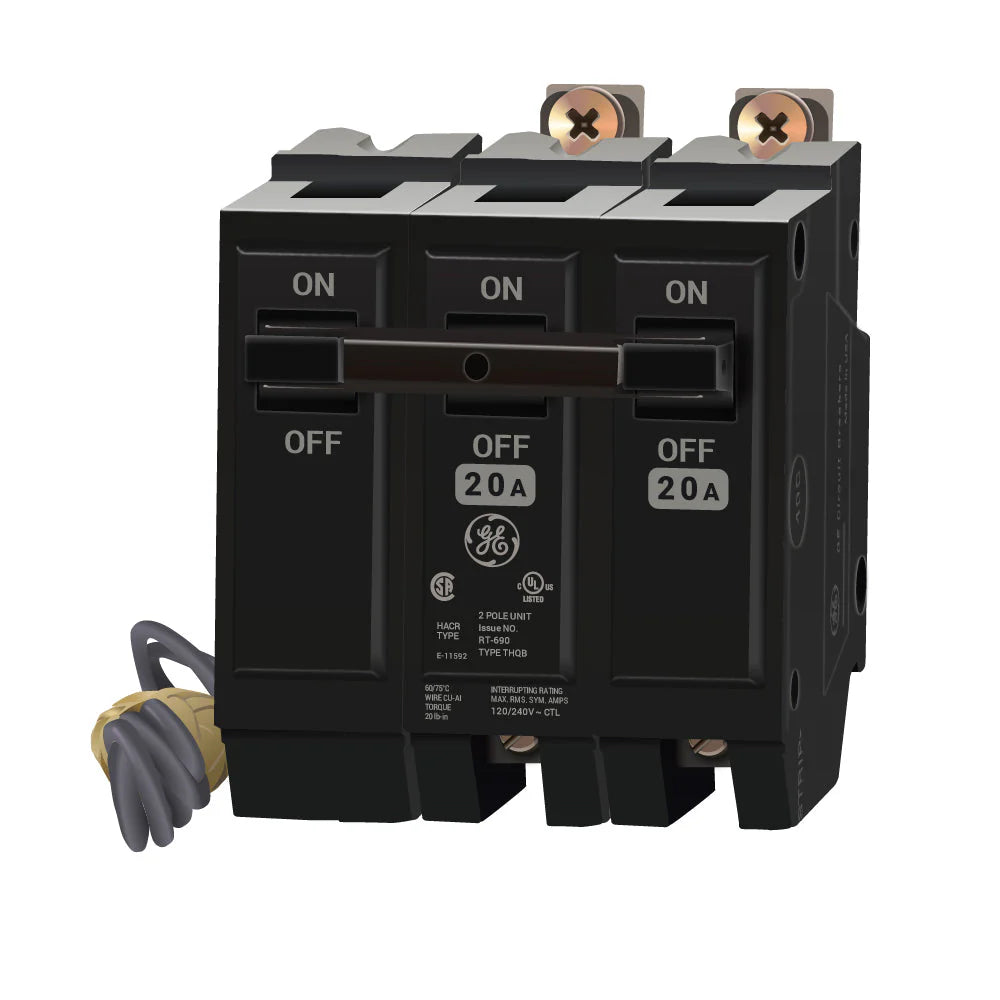

Q Line Circuit Breakers are compact, **thermal-magnetic** devices designed for residential and commercial use. These **bolt-on** versions of the Q Line are perfect for bolting to the bus connections of load centers and lighting panels. Featuring **Quick-make/Quick-break** mechanisms and common trip bars, these breakers provide excellent safety and reliability with easy-to-spot trip indications. Available in 1, 2, and 3-pole versions, they can be customized with auxiliary contacts and shunt trip accessories. Suitable for HID applications, the Q Line breakers are now available for purchase on Best Mobility Equipment. Rated at 20A, these breakers deliver secure, efficient circuit protection. Features
- Breaker Type: Bolt-on version for load centers and lighting panels
- Width per Pole: 1 inch
- Amperage: 20 A
- Mechanism: Quick-make/Quick-break for reliable operation
- Poles Available: 1, 2, and 3-pole versions
- Accessories: Available with auxiliary contacts and shunt trip
- Application: Suitable for HID applications
- Safety Features: Common trip bars and easy-to-spot trip indication
Specifications
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amperage | 20 A |
| System Voltage | 120 Vac, 120/240 Vac |
| Poles | 2 |
| Trip Function | LI (Long Time and Instantaneous) |
| Continuous Current Rated | Standard |
| Interrupting Rating (120 Vac) | 10 KAIC |
| Interrupting Rating (120/240 Vac) | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR |
| GSA Compliance | No |
