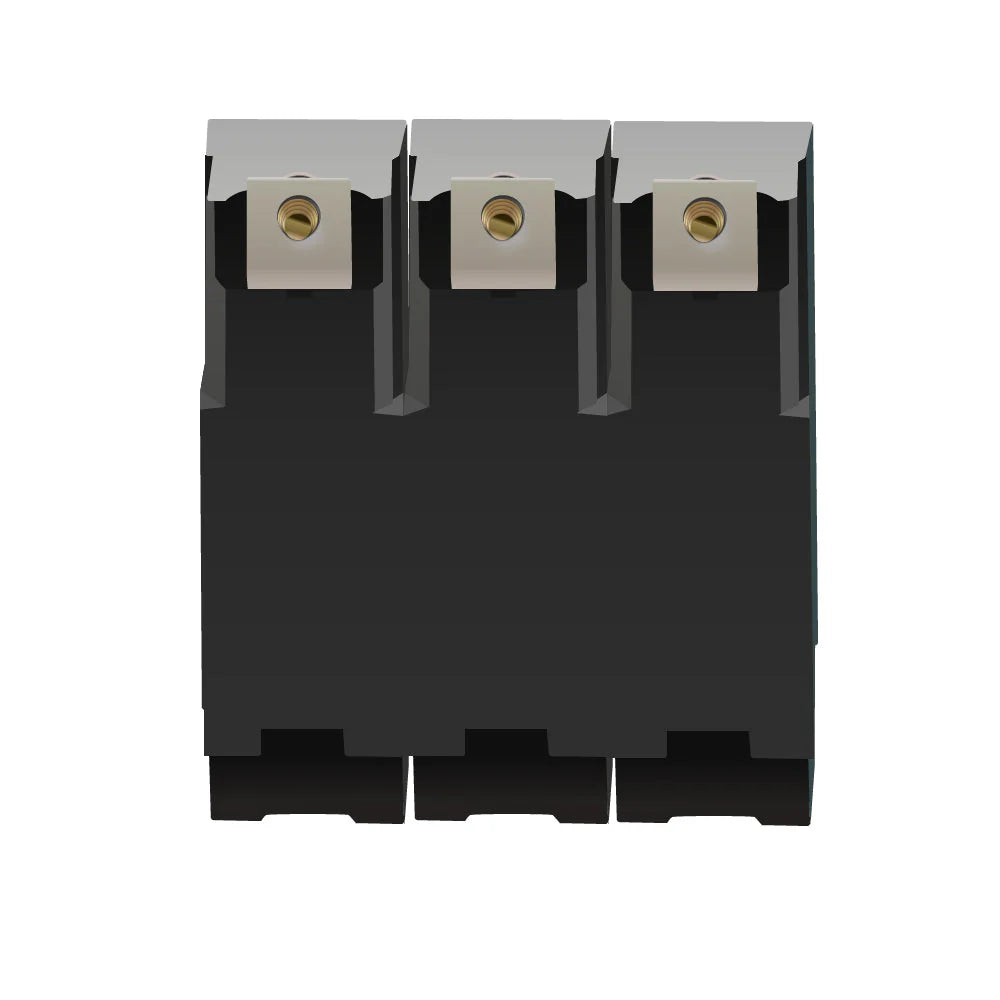

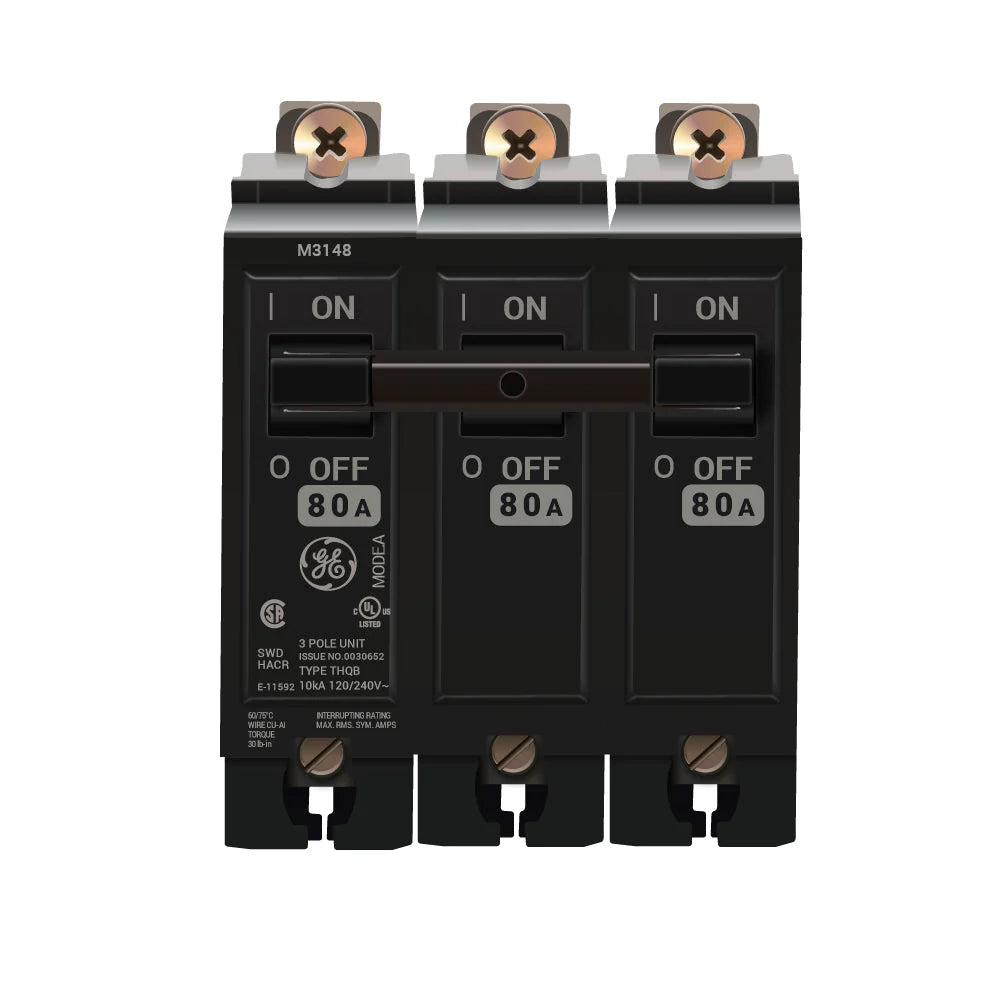

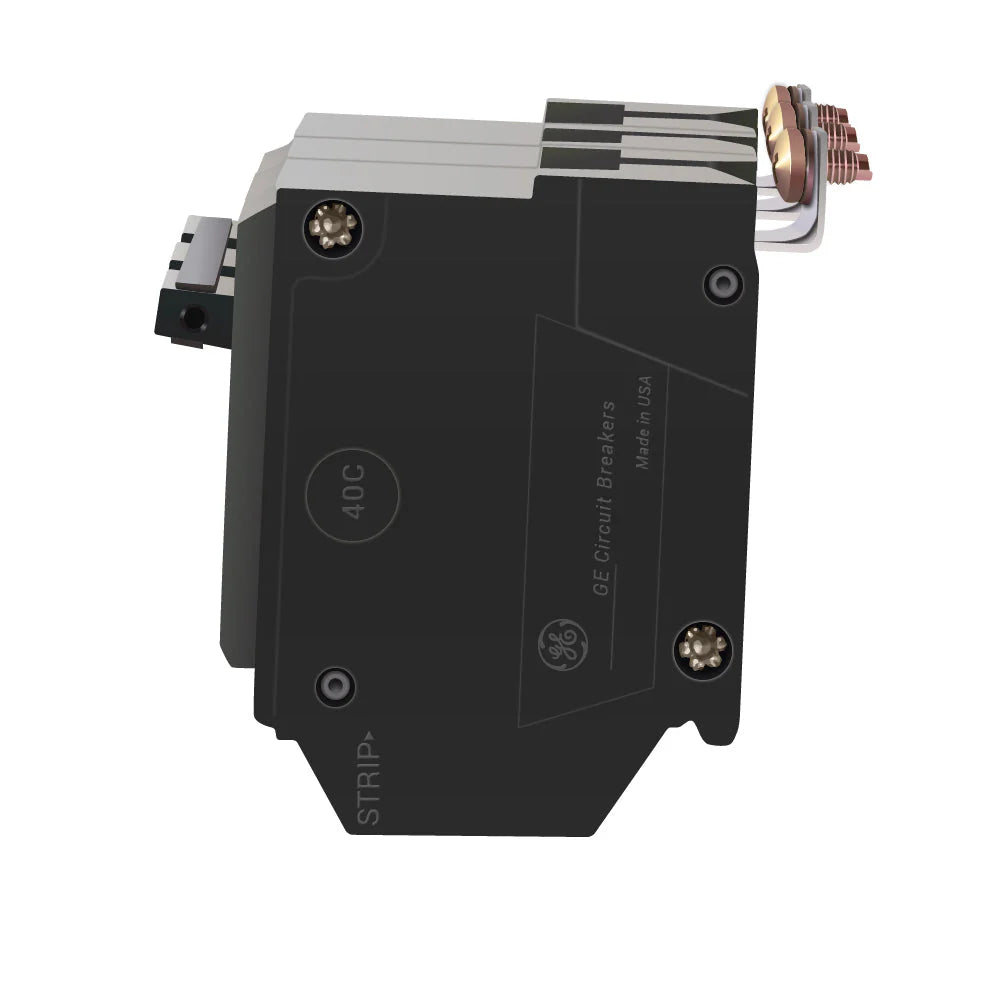

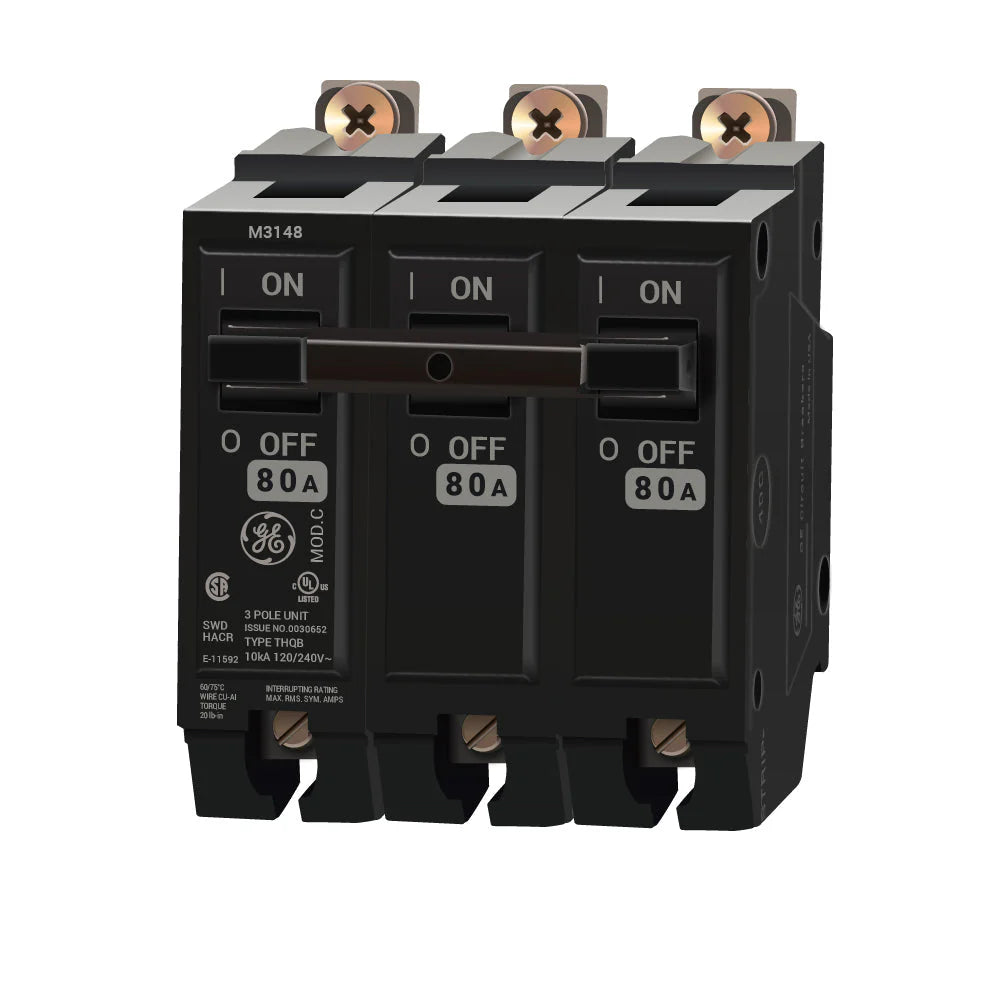

GE Q-Line THQB32080 Circuit Breaker
The GE Q-Line THQB32080 is a molded case thermal magnetic miniature circuit breaker designed for reliable circuit protection. It operates at 240 VAC and supports an 80 A current rating with a 10 kA interrupt rating, ensuring robust performance in residential and commercial applications. This breaker is ideal for safeguarding electrical systems against overloads and short circuits, providing dependable protection in a compact design. Its thermal magnetic mechanism ensures quick response to fault conditions, making it a trusted choice for modern electrical installations.
Features
- Design: Bolt-on versions for secure connection to load centers and lighting panels.
- Mechanism: Quick make/quick break mechanisms for reliable operation.
- Safety Features: Common trip bars and easy-to-spot trip indication for enhanced safety.
- Versatility: Available in 1, 2, and 3-pole versions; compatible with auxiliary contact and shunt trip accessories.
- Applications: Suitable for HID (High-Intensity Discharge) lighting applications.
- Trip Mechanism: Fixed instantaneous trip for quick response to fault conditions.
- Wire Compatibility: Supports both copper (Cu) and aluminum (Al) wiring.
- Internal Design: Internal common trip for synchronized tripping across poles.
Specifications
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Amperage Rating: | 80 A |
| Phase: | 3 |
| Temperature Rating: | 40°C |
| Voltage Rating: | 240 VAC |
| Trip Type: | Long Time and Instantaneous |
| Height: | 3.28 in |
| Width: | 3 in |
| Depth: | 2.38 in |
| Catalog ID: | THQB32080 |
| Mounting Type: | Bolt-On |
| Standards & Approvals: | UL E11592, CSA Certified |
| Wire Size: | 6 to 1/0 AWG (copper), 4 to 1/0 AWG (aluminum) |
| Type: | Type THQB Molded Case Thermal Magnetic |
