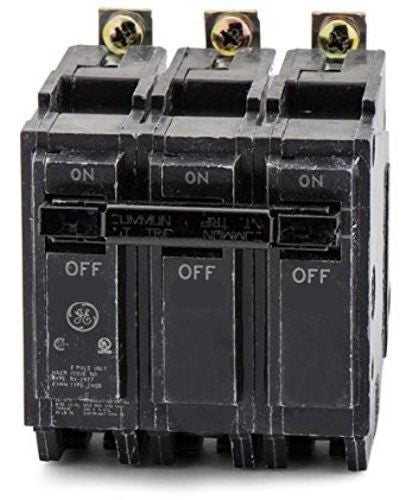

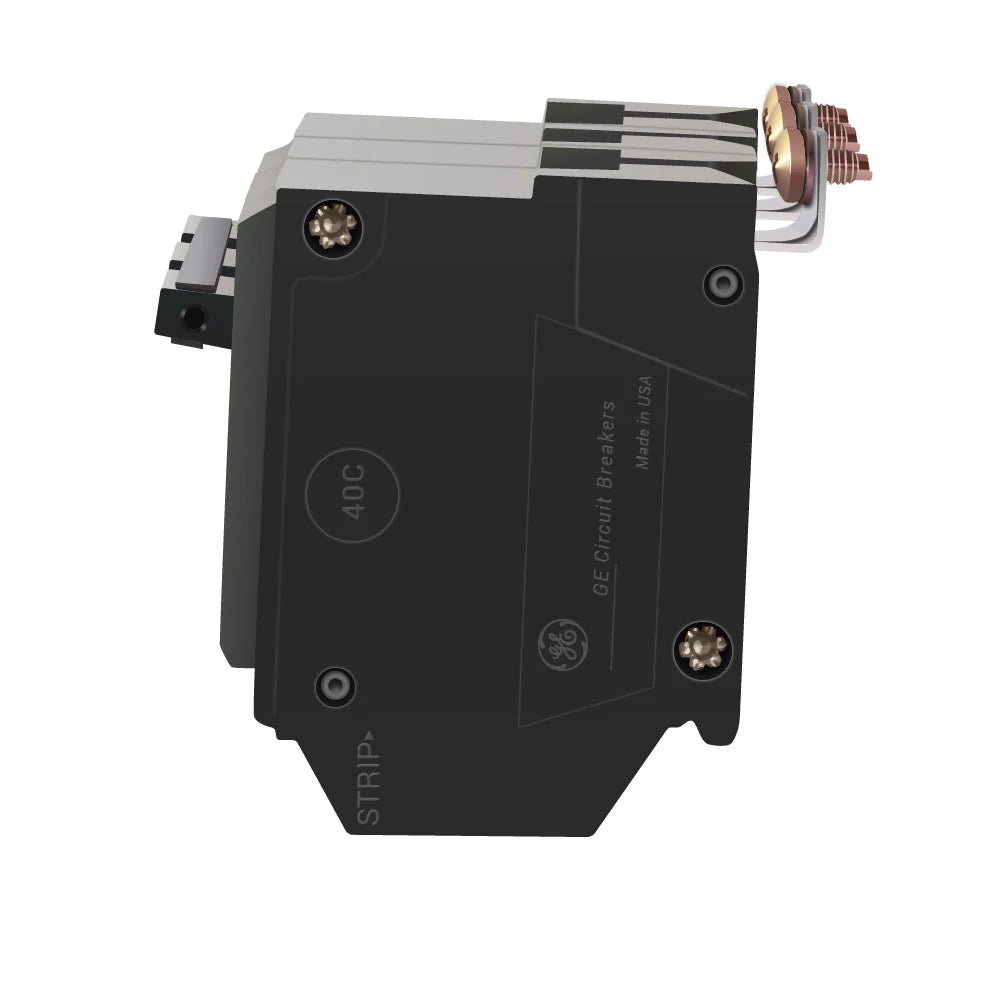

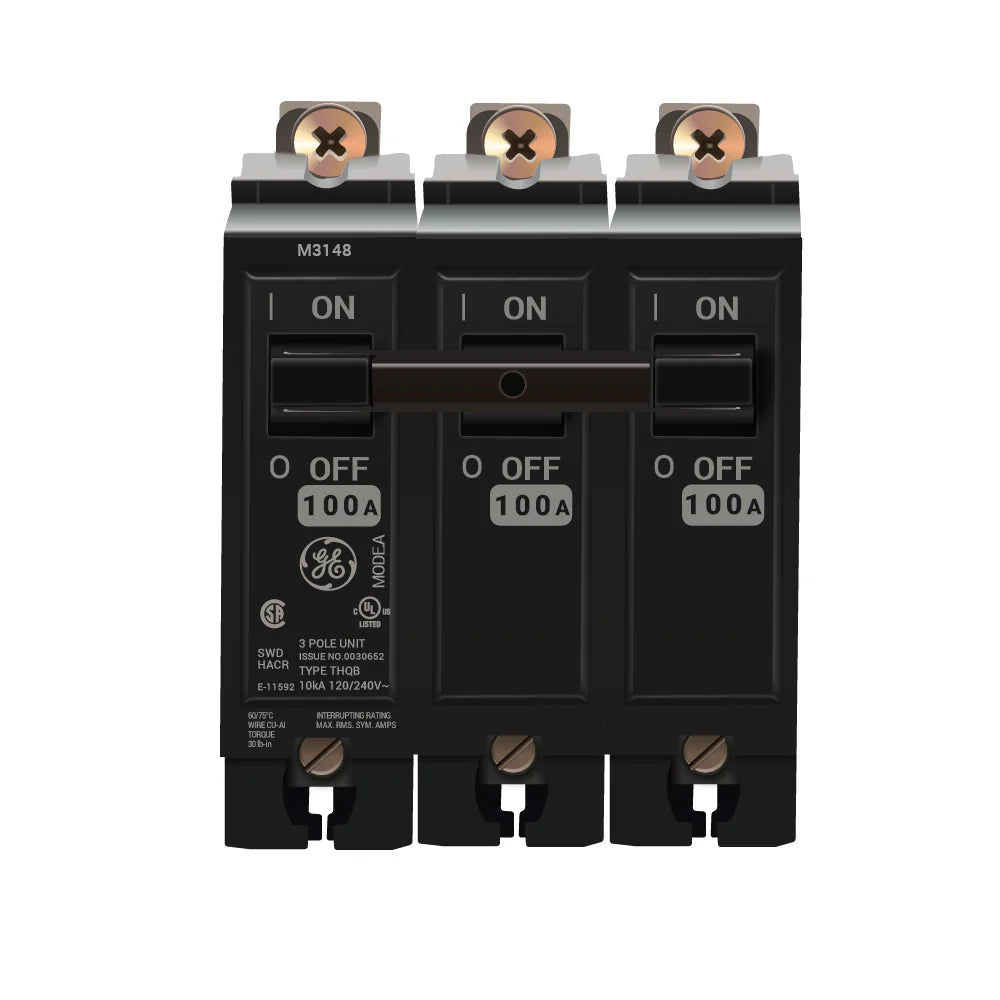

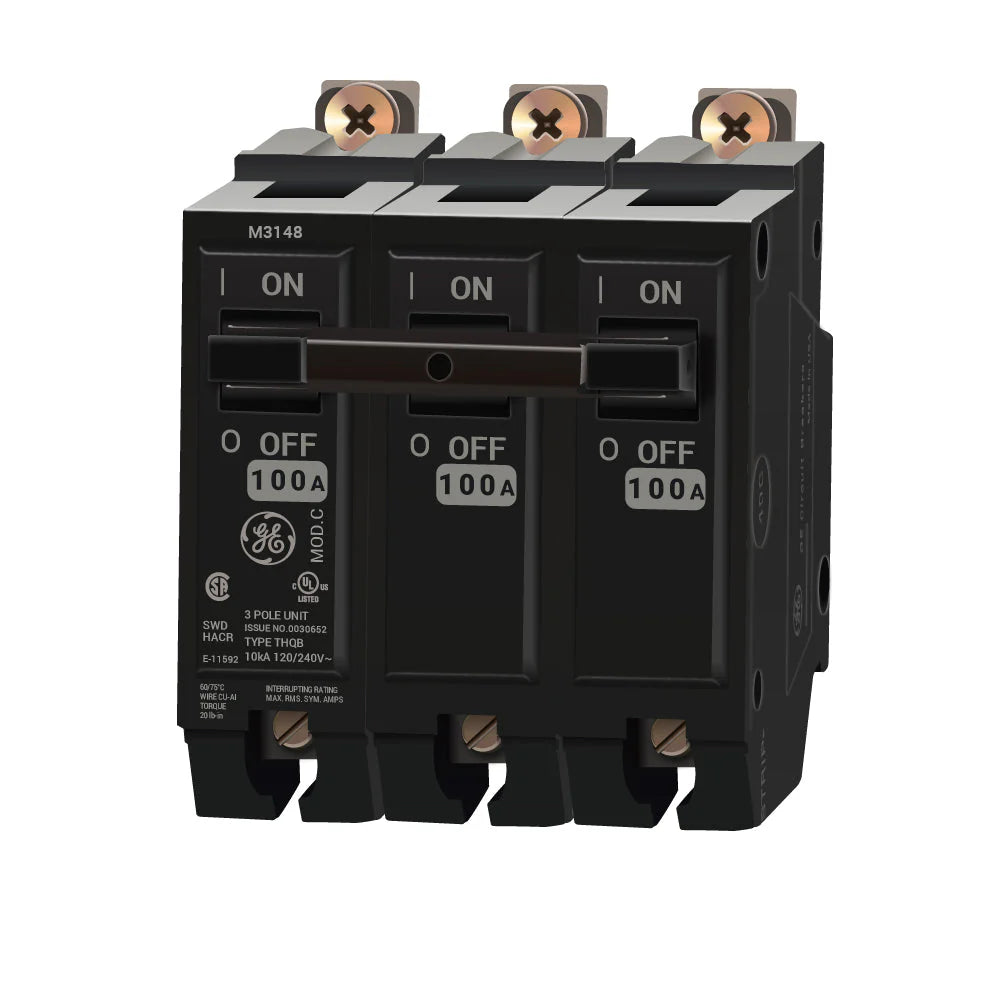

Q Line Circuit Breakers Overview
Q Line circuit breakers are compact, thermal-magnetic devices designed for residential and commercial applications. Available in 1, 2, and 3-pole versions, they feature a Quick-make/Quick-break mechanism and common trip bars for enhanced safety. These breakers include easy-to-spot trip indicators and can be equipped with auxiliary contacts and shunt trip accessories for specialized use. The QB series offers bolt-on versions for secure bus connections in load centers and lighting panels. Suitable for HID applications, Q Line breakers ensure reliable performance in diverse electrical systems.
Features
- Design: Compact, thermal-magnetic devices, one-inch wide per pole.
- Applications: Suitable for residential and commercial use.
- QB Breakers: Bolt-on versions for bus connections in load centers and lighting panels.
- Features: Quick-make/Quick-break mechanisms, common trip bars, and easy-to-spot trip indicators.
- Versions: Available in 1, 2, and 3-pole configurations.
- Accessories: Compatible with auxiliary contacts and shunt trip accessories.
- Special Use: Suitable for HID applications.
- Current Rating: 100 Amps.
Specification
| Manufacturer: | General Electric |
| Family: | THQB Bolt-On Series |
| Catalog No.: | THQB32100 |
| Alternate No.: | THQB3100 |
| Poles: | 3 |
| Amperage: | 100 Amp |
| Voltage: | 240 Volt |
| Connection: | Bolt-On |
| Phase: | 3 |
| Interrupting Rating: | 10000 Ampere |
| Height: | 3" |
| Width: | 3" |
| Depth: | 3" |
| Certifications: | CSA Approved, UL Listed |
| Authenticity: | Authentic General Electric Product |
