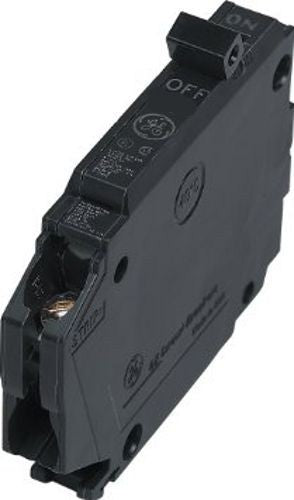

General Electric Q-Line THQP130 Type THQP Molded Case Circuit Breaker is designed for 120/240 VAC systems and offers a 30 A amperage rating. This compact breaker is ideal for residential and commercial applications, providing a 10 kA interrupt rating for enhanced protection. The single-pole design ensures efficient performance and safety in various electrical circuits. With thermal magnetic protection, it is specifically engineered for reliability and fast, accurate response to overloads or short circuits. Its robust features make it a reliable choice for both standard and high-demand environments, ensuring a safe power distribution system.
Features
- Size: Half the width of standard breakers
- Efficiency: Allows use of smaller load centers for space and cost savings
- Flexibility: Identical design to standard breakers
- Trip Type: Non-interchangeable
- Mechanism: Quick-make, quick-break
- Connection: Feeder 1/2 in plug-in
- Wire Type: Cu/Al wire
Specifications
| Interrupt Rating: | 10 kA |
| Mounting Type: | Plug-In |
| Number of Poles: | 1 |
| Amperage Rating: | 30 A |
| Connection Type: | Box Lug |
| Phase: | 1 |
| Temperature Rating: | 60 deg C / 75 deg C |
| Trip Type: | Long Time / Instantaneous |
| Type: | Type THQP |
| Voltage Rating: | 120/240 V |
| Wire Size: | 8 to 4 AWG |
| Standard & Approvals: | UL E11592, UL 489, Federal Specification (WC-375B), HACR Rating |
| Dimensions: | 3-9/32 in H x 1/2 in W x 2-3/8 in D |
