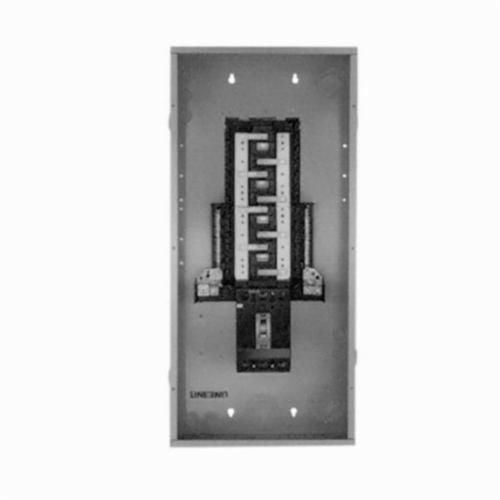

GE PowerMark Plus™ PowerMark Gold™ Load Center
The GE PowerMark Plus™ PowerMark Gold™ is a three-phase standard main breaker load center designed for efficient power distribution. It operates at 208 Y/120 VAC and supports a 200 A current rating, making it suitable for residential and commercial applications. This load center ensures reliable performance and safety, featuring a robust design for easy installation and maintenance. Ideal for modern electrical systems, it provides a dependable solution for managing power distribution in various settings.
Features
- Certification: Suitable for use as service entrance equipment when installed per the National Electrical Code.
- Spaces: 42 spaces, 1-inch each.
- Conductor Rating: 60/75°C conductor rating.
- Feed Type: Top feed design for easy installation.
- Wire Compatibility: Supports 1 AWG - 250 kcmil copper and 2/0 AWG - 250 kcmil aluminum.
- Enclosure: Outdoor Type 3R enclosure for durability.
- Convertibility: Main lug models field-convertible to main breaker.
- Wiring: Split neutrals extend full length for ease of wiring; straight-through main wiring.
- Design: Compact box maintains optimal wire-bending space.
- Packaging: Front-packed in inner carton for added protection.
Specifications
| Interrupt Rating: | 22 kA |
| Mounting Type: | Flush |
| Number of Circuits: | 42 |
| Number of Spaces: | 42 |
| Amperage Rating: | 200 A |
| Catalog ID: | G-ETM42420R |
| Height: | 43-11/16 in |
| Width: | 12-1/2 in |
| Depth: | 5-3/4 in |
| Enclosure Box Size: | R8 |
| Enclosure Type: | NEMA 3R |
| Wiring Configuration: | 4-Wire |
| Standards & Approvals: | GSA Compliant, UL Listed |
| Wire Size: | 1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil |
| Voltage Rating: | 208 Y/120 VAC |
| Type: | Three Phase Standard |
| Breaker Type: | THQL |
| Breaker Mounting: | Plug-In |
