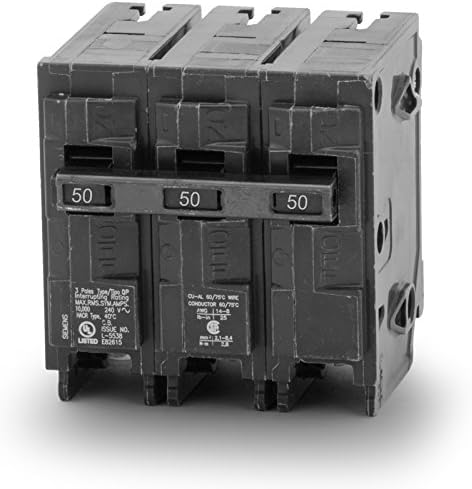

The Q350 is a circuit breaker designed for three-phase electrical systems. Features 50A/3-pole protection with 120V AC compatibility and 10kA interrupting capacity. Its thermal-magnetic trip mechanism ensures precise overload and short-circuit response, while the compact 3-inch width (1-inch per pole) optimizes panel space. Bolt-on terminals provide secure connections for #6-1/0 AWG wires, and UL 489 compliance guarantees safety in commercial/industrial environments. Ideal for motor controls, machinery, and three-phase equipment requiring reliable circuit protection.
Features
- Electrical: 50A, 120V AC per pole
- Electrical: 3-pole thermal-magnetic trip
- Physical: 3-inch total width (1-inch per pole)
- Physical: Reinforced thermoplastic housing
- Performance: 10kA interrupting rating
- Installation: Bolt-on panel mounting
- Installation: Accepts #6-1/0 AWG
- Compliance: UL 489 listed
- Application: Three-phase motor circuits
- Application: Industrial control panels
