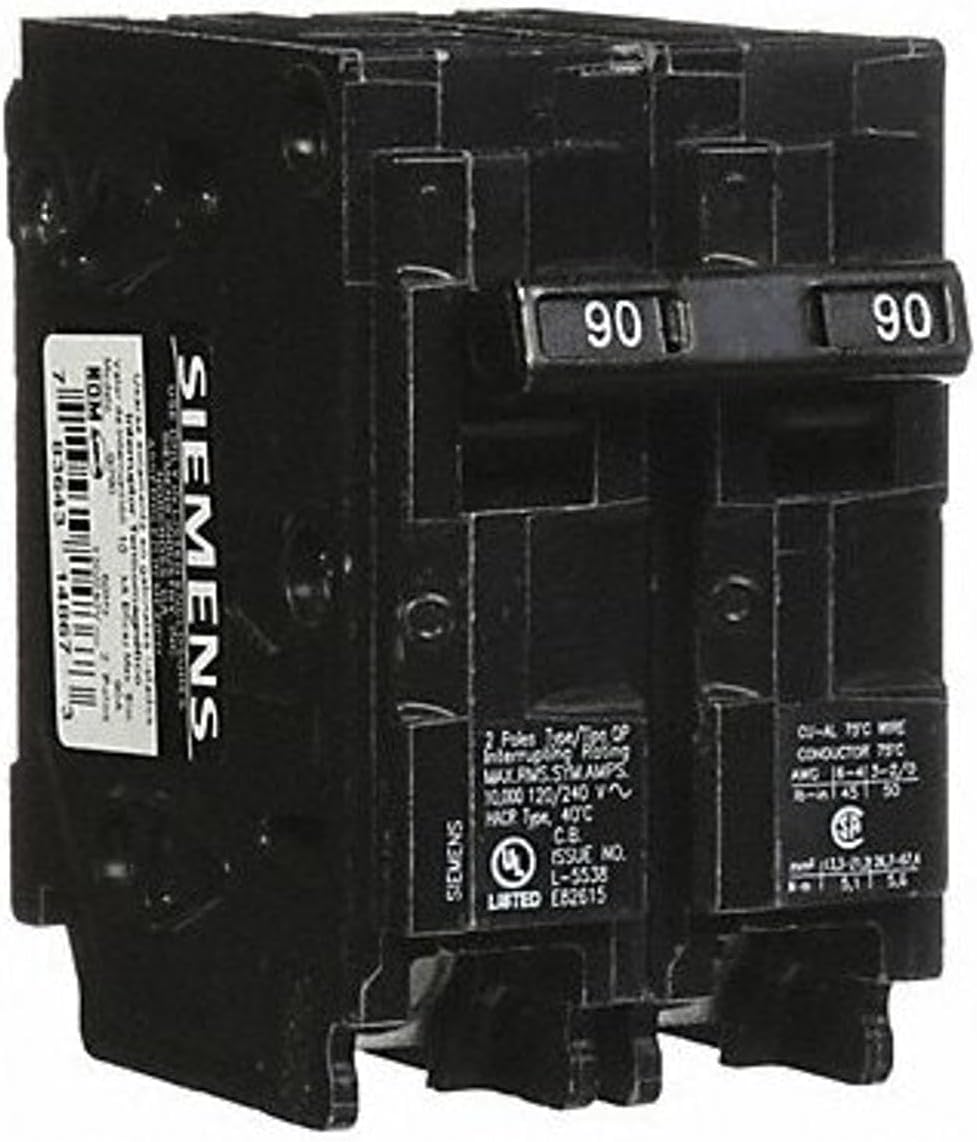

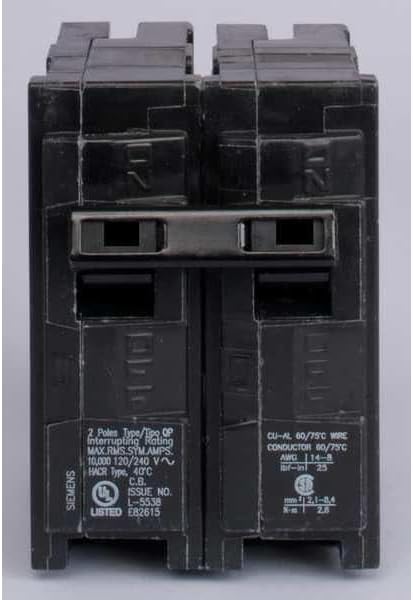

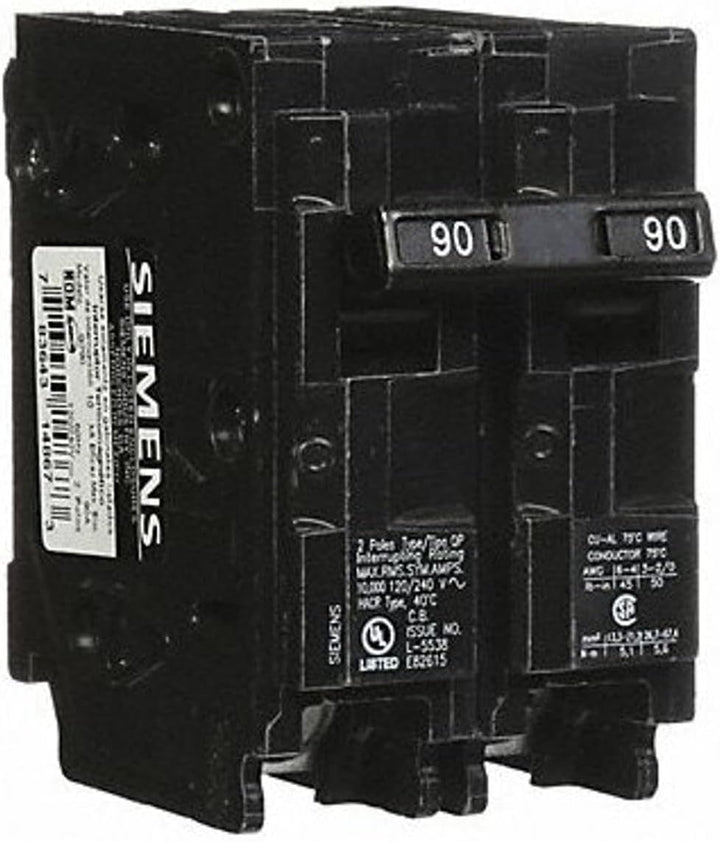

This Siemens Q290 circuit breaker is a robust 2-pole breaker designed for 240V electrical systems. With a 90 Amp capacity, it offers reliable overload and short-circuit protection for various applications. Its convenient plug-in design allows for straightforward installation in compatible Siemens load centers.
Features
- Type: Thermal Magnetic Circuit Breaker
- Amperage: 90 Amps
- Poles: 2 (Double Pole)
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10,000 AIC
- Mounting Type: Plug-In
- Compatible Load Centers: Siemens EQ, EQL, SEQ, EQG, PL, and ES Series
- Terminal Type: Lug Terminals
- Wire Range: 8–2 AWG (Copper or Aluminum)
- Trip Type: Thermal Magnetic (Long-Time and Instantaneous Trip)
- Dimensions: Approximately 3” (H) x 2” (W) x 3” (D)
-
Weight: Approximately 0.617 lbs
DISCLAIMER:
The photo and information provided are not guaranteed. It’s important to conduct your own research and/or consult with an electrician to ensure compatibility.
