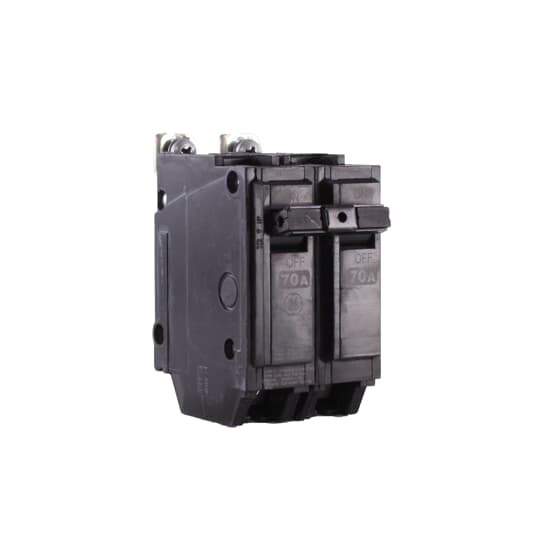

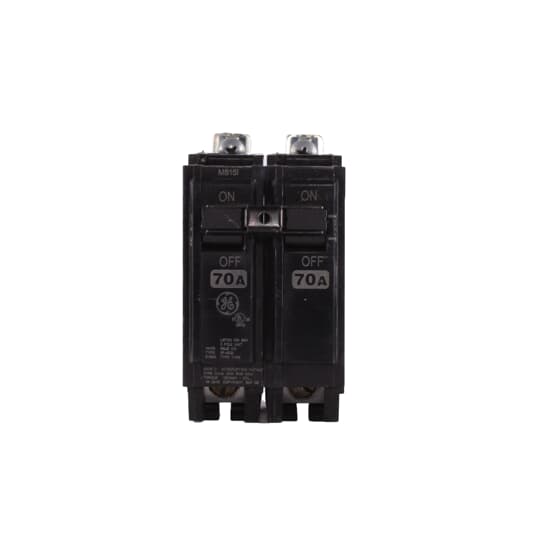

The GE bolt-on circuit breaker is a thermal-magnetic device designed for residential and commercial applications. This 2-pole breaker has a 70A current rating and is suitable for 120/240V AC systems. It offers reliable overcurrent and short circuit protection with an interrupting capacity of 10 kA. The bolt-on mounting ensures a secure connection in load centers and lighting panels. Key features include quick-make/quick-break mechanisms and a common trip bar for enhanced safety and reliability. It is also suitable for reverse feed applications.
Features
- Electrical Protection: Provides overcurrent and short circuit protection.
- Voltage Rating: Suitable for 120/240V AC systems.
- Current Rating: Features a 70A capacity.
- Number of Poles: 2-Pole configuration.
- Mounting Type: Bolt-on design for secure installation.
- Interrupting Rating: Has an interrupting capacity of 10 kA at 120/240V AC.
- Trip Type: Thermal Magnetic trip mechanism with Long-Time and Instantaneous (LI) functions.
- Wire Compatibility: Accepts copper wire sizes from 6 AWG to 1/0 AWG and aluminum wire sizes from 4 AWG to 1/0 AWG.
- Safety Features: Includes quick-make/quick-break mechanisms and a common trip bar.
- Reverse Feed: Suitable for reverse feed applications.
You may also like
More from Go Breaker
Recently viewed
GE Bolt on Breaker - Buy GE ABB Bolt-On Circuit Breaker Online
In order to protect your electrical panel, you need a quality bolt on circuit breakers and finding the right one is quite a hefty task. The GE bolt on breaker is one of a kind and offers just the kind of protection you need for your electrical circuits. The experts have designed top notch quality breakers that are specifically built for safety, increased efficiency and a long lasting performance. Whether you are a contractor or an electrician, with us, it’ll be really easy to choose the breaker that your panel needs as we
offer a wide range of variety to our customers.
How Does A GE Bolt On Breaker Work?
A GE Bolt on breaker is meant to provide a secure and reliable connection to your electric panel’s bus bar. Its main function is to protect the circuit from short circuits and overloading. In case of a short circuit or overload, the breaker trips, blocking the supply of electricity and hence it protects your appliances from damage.
Overload Protection: In case of a circuit overload, what happens is that when too much electricity is flowing, the breaker heats up the bimetallic strip. Once heated, the strip bends and the breaker trips to open up the circuit.
Short Circuit Protection: In case of a short circuit, the magnetic coil inside the breaker immediately activates and it causes the breaker to trip which then blocks the electricity supply.
Visible Tripping Mechanism: The tripping mechanism is visible. The handle or the switch of the breaker will automatically move to the “off” position in such situations.
Resetting: You can reset the breaker manually once the issue has been resolved. You just have to bring the breaker back to the “on” button.
Why Choose The GE ABB Bolt On Breaker?
Are you in search of the best and the most reliable breakers that offer secure installation and superior quality? If yes then here are some convincing reasons to why you should give our breaker a try;
1-Durability: Most cheap circuit breakers lack quality and durability. They aren’t able to cope with the demanding environment but with the GE bolt on breaker, you won’t have to face any such complaints. Our breakers are built to last and they are perfectly engineered to fit all environments effortlessly.
2-Secure Fit: The problem with plug in models is that they often end up in loose connections which can be very risky. The bolt on breakers are built differently and it’s the best and the most secure fit one can imagine. You simply have to fasten the breaker directly to the panel bus bars and it’ll be good to go!
3-Our Breakers Our Industry Compliant: The entire range of breakers meets the industry standards both for performance and for safety. We do not compromise on the quality and safety that our breakers offer.
4-Quick Make/Quick Break Feature: During fault conditions, our breakers feature a quick make/quick break mechanism in order to rapidly disconnect the electricity supply and protect the system from any damage.
5-Compact And Space Saving Design: You do not require any excessive space to install the GE bolt breaker. It’s a compact device that’s designed for easy installation. It can easily fit your GE panelboards along with your other load centers. Even in tight electrical enclosures, our breakers can easily fit in.
For efficient electric protection, try the GE ABB bolt on circuit breaker at unbeatable prices. Discover our wide selection of top notch quality breakers to get the best value for your money.
Get Your GE Bolt Breaker Today
With GE ABB bolt breaker, you can protect your circuits without any hassle. You can browse our wide range of breakers and order the one that fits your needs now. Whether you are building a new infrastructure, doing any maintenance work or simply upgrading your panel, we’ve got you covered with just the right solution you need. What’s best is that our breakers are suitable for commercial, industrial and residential purposes. From main breaker panels to sub panels in buildings and even the HVAC systems, our breakers are just the perfect fit you need for electrical protection. In a nutshell, if you are looking for a solid, reliable and vibration resistant connection then the GE bolt breaker will serve your purpose in the best way possible.
