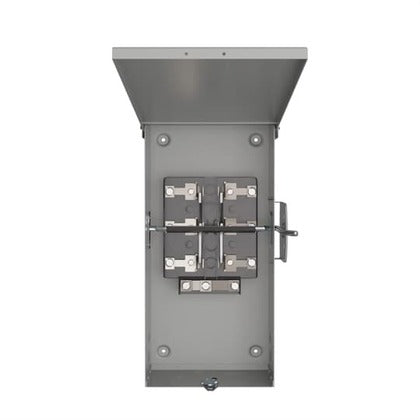

The TG3224R is a reliable 200 amp safety switch designed for 240V AC applications. Featuring a 2-pole configuration, this switch is ideal for both residential and commercial use, with a NEMA 3R enclosure rating for outdoor applications. Its interrupting capacity is rated at 10,000 RMS symmetrical amps for standard fuses and up to 100,000 RMS symmetrical amps with Class R fuses. The switch mechanism includes a quick-make, quick-break design for reliable operation, and it ensures safety with an integral cover interlock. This switch is UL 98 Listed and CSA Certified, ensuring compliance with industry safety standards for electrical installations.
Features
- Electrical Rating: 200 Amps, 240V AC
- Configuration: 2-Pole, 3-Wire
- Enclosure Type: NEMA 3R (Outdoor use)
- Fuse Compatibility: Accepts Class H, K, J, or R fuses
- Interrupting Capacity (AIC): 10,000 RMS symmetrical amps (standard); 100,000 RMS symmetrical amps with Class R fuses
- Mounting Style: Surface-mounted with self-leveling, three-point system
- Switch Mechanism: Quick-make, quick-break direct drive
- Safety Features: Integral cover interlock; visible confirmation of plated blade contact positions
