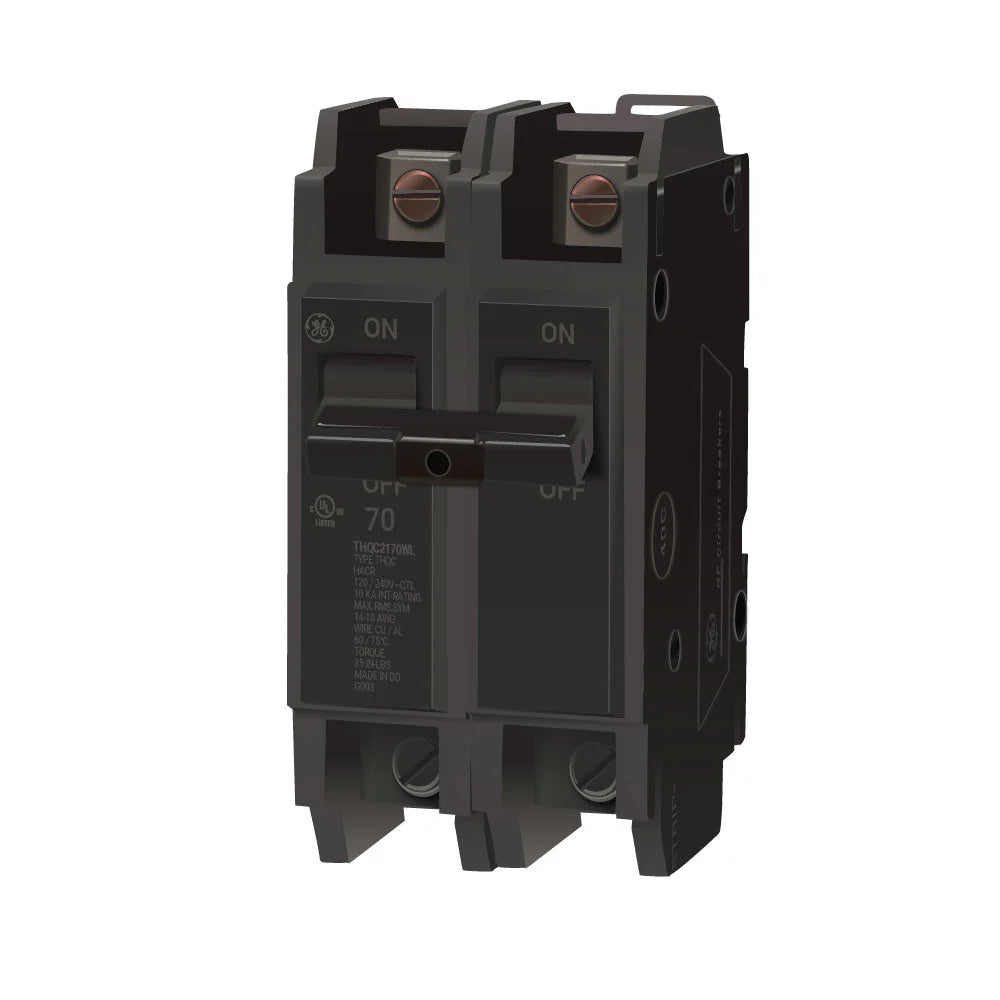

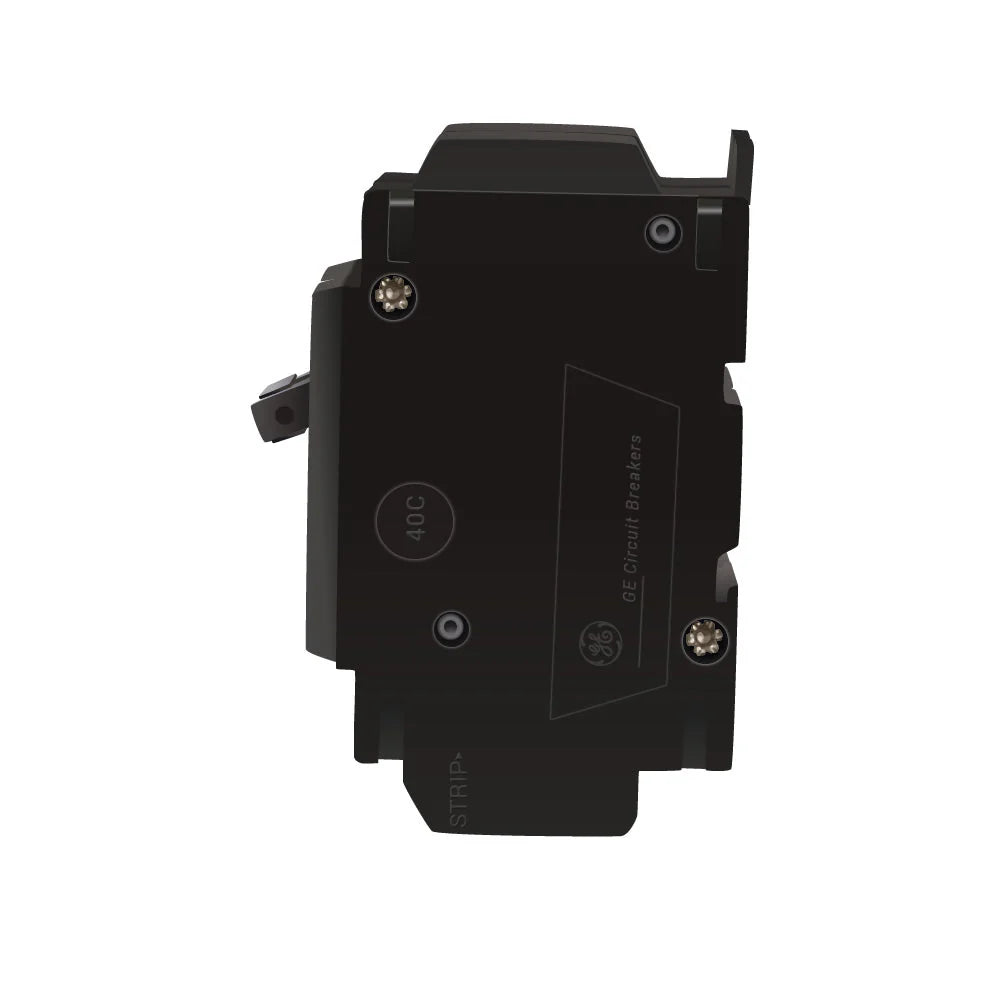

Q Line Circuit Breakers
Q Line circuit breakers are compact, one-inch wide per pole devices designed for residential and commercial applications. These thermal-magnetic breakers feature Quick-make / Quick-break mechanisms and common trip bars for enhanced safety and reliability. Available in 1, 2, and 3 pole versions, they support auxiliary contact and shunt trip accessories for added functionality. The QC breakers, a lug-lug version of the Q Line, are compatible with 35mm DIN rail mounting, offering flexibility in installation. With easy-to-spot trip indication and a robust design, Q Line breakers ensure efficient circuit protection.
Features
- Design: Compact, one-inch wide per pole, thermal-magnetic devices.
- Applications: Suitable for residential and commercial use.
- Versions: Available in 1, 2, and 3 pole configurations.
- Mounting: QC breakers support 35mm DIN rail mounting.
- Safety Features: Quick-make/Quick-break mechanisms, common trip bars, and easy-to-spot trip indication.
- Accessories: Compatible with auxiliary contact and shunt trip accessories.
- Amperage: 70 A.
Specifications
| Specification | Details |
|---|---|
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amperage | 70 A |
| System Voltage | 120 Vac, 120/240 Vac |
| Poles | 2 |
| Trip Function | LI |
| Continuous Current Rated | Standard |
| Interrupting Rating | 10 KAIC (120 Vac), 10 KAIC (120/240 Vac) |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR |
| GSA Compliance | No |
| Width | 1 inch per pole |
| Height | Not specified |
| Depth | Not specified |
| Weight | Not specified |
