GE ABB - Main Lug Load Center | 30 Circuits, 200Amp, 3 Phase - TL30420R

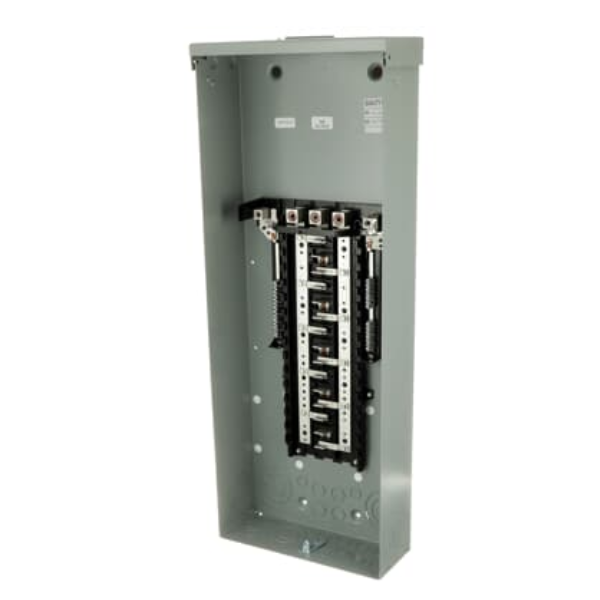

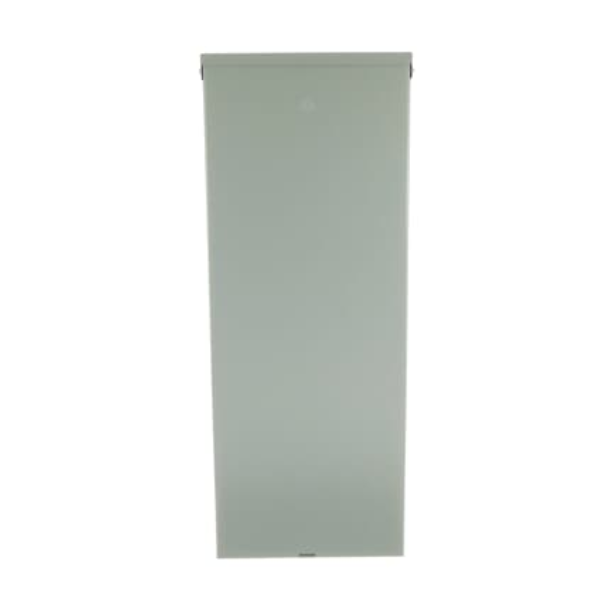

The GE ABB TL30420R is a PowerMark Plus Main Lug Load Center designed for commercial or high-rise residential applications requiring three-phase power and an outdoor enclosure. The "TL" indicates Main Lug (no main breaker) and the "R" indicates a NEMA 3R (Outdoor) rating.

Features

• Number of Circuits: 30

• Bus Bar Material: Aluminum

• Main Lug Wire Size Range (Cu/Al): Copper (Cu): 1 AWG to 250 kcmil Aluminum (Al): 2/0 AWG to 250 kcmil

• Neutral Type: Fully insulated neutral bar.

• Neutral/Ground Configuration: Neutral Included. (Ground bar/kit typically sold separately for MLO panels - check local code and specific distributor offering).

• Required Ground Kit: TGK32 (Equipment Ground Kit is generally ordered separately)

• Breaker Type Compatibility: GE THQL (Standard 1" width) and THQP (Half-size 1/2" width) Plug-In Breakers.

• Feed Location: Top or Bottom Feed (Unit can be installed upside down for bottom main lugs, per UL rules).
