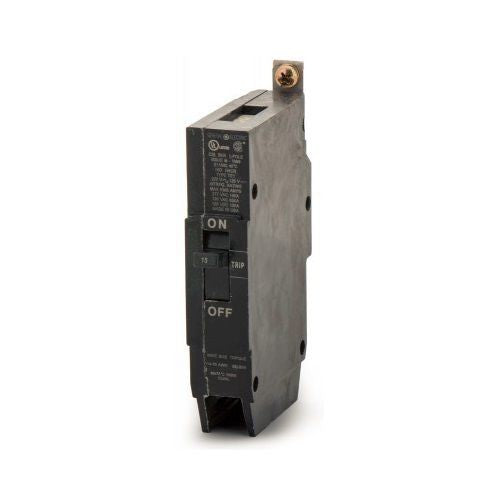

TEY Circuit Breaker: The TEY is a 1-inch wide per pole, compact, bolt-on circuit breaker designed for grounded 480Y/277 VAC systems. It features a quick-make/quick-break mechanism for reliable operation, along with common trip bars and easy-to-spot trip indications for safety. The TEY's bolt-on mounting base makes it versatile, suitable for applications as a lug-lug breaker. Available in 1, 2, and 3-pole versions, it can also be ordered with additional accessories such as auxiliary contacts and shunt trip options to meet specific needs. These breakers ensure enhanced safety and performance across a variety of applications.
Features
- Suitable for Reverse Feed: Yes
- Continuous Current Rating: Standard
- Trip Function: Fixed Long Time, Fixed Instantaneous
- Special Markings: HACR, SWD
- Wire Type: Copper/Aluminum
- Interrupt Rating: 14 kA at 277 VAC
Specifications
| Specification | Details |
|---|---|
| Interrupt Rating | 14 kA |
| Mounting Type | Bolt-On |
| Number of Poles | 1 |
| Phase | 1 |
| Series | Q-Line |
| Temperature Rating | 40 deg C |
| Trip Type | Non-Interchangeable/Thermal Magnetic/LI |
| Type | Type TEY |
| Voltage Rating | 120/240/277 VAC |
| Wire Size | 14 to 10 AWG |
| Standard & Approvals | CSA LR57114, UL E11592 |
| Amperage Rating | 15 A |
| Dimensions (Width) | 1 in |
| Dimensions (Depth) | 3-1/16 in |
| Dimensions (Height) | 5-1/4 in |
| Connection Type | Load Lug |
| Includes | Integral Copper/Aluminum Load Lug |
