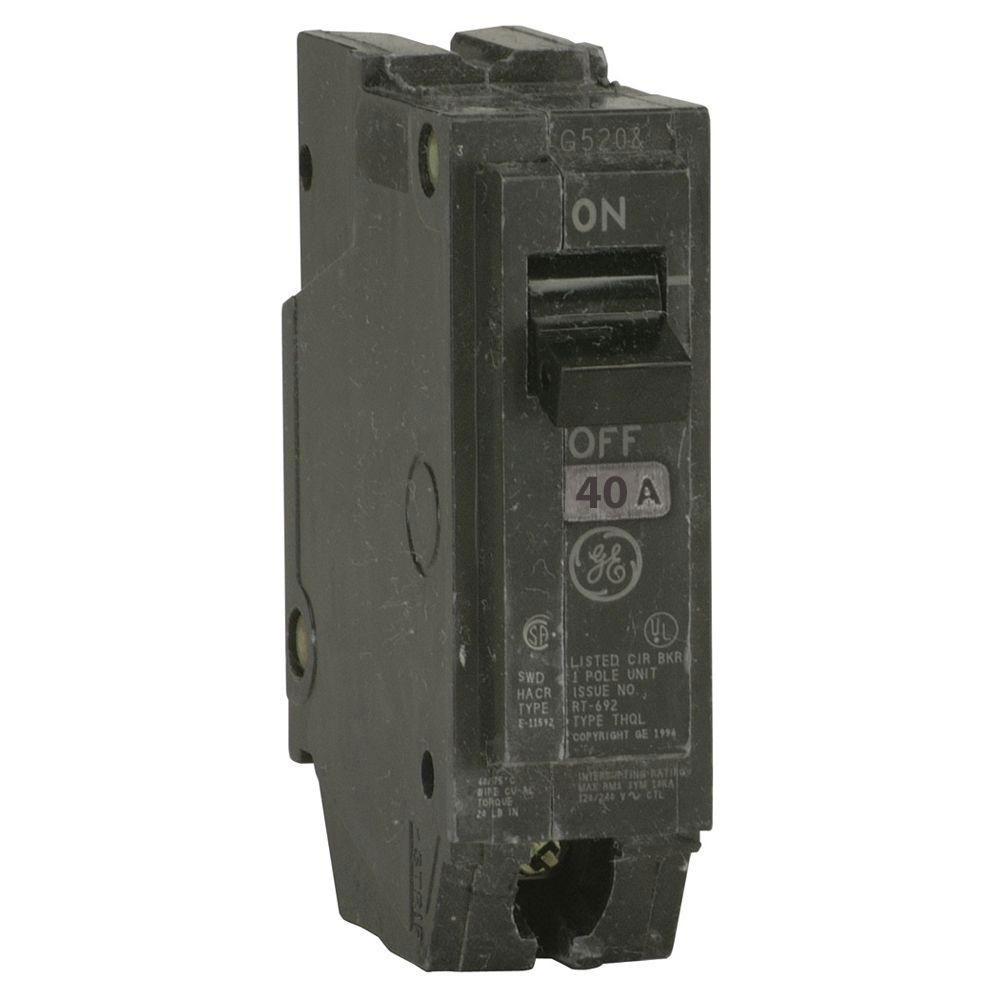

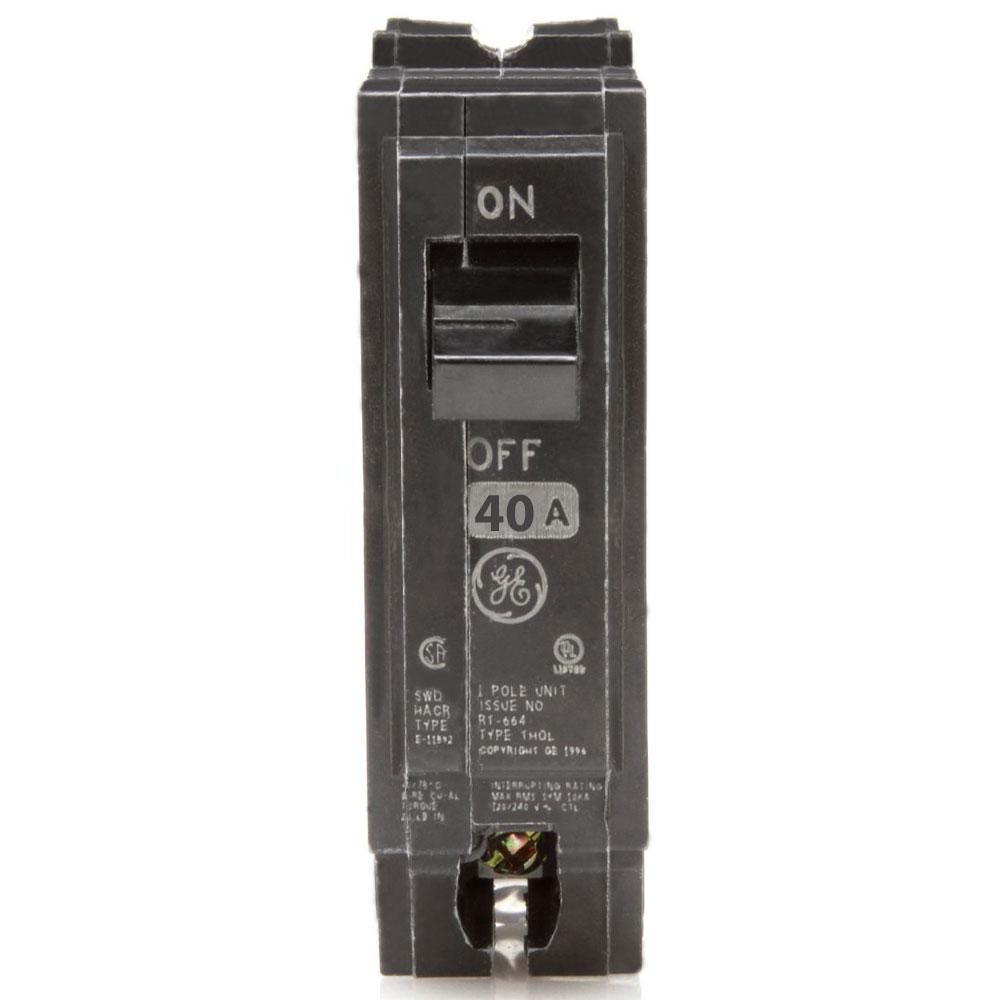

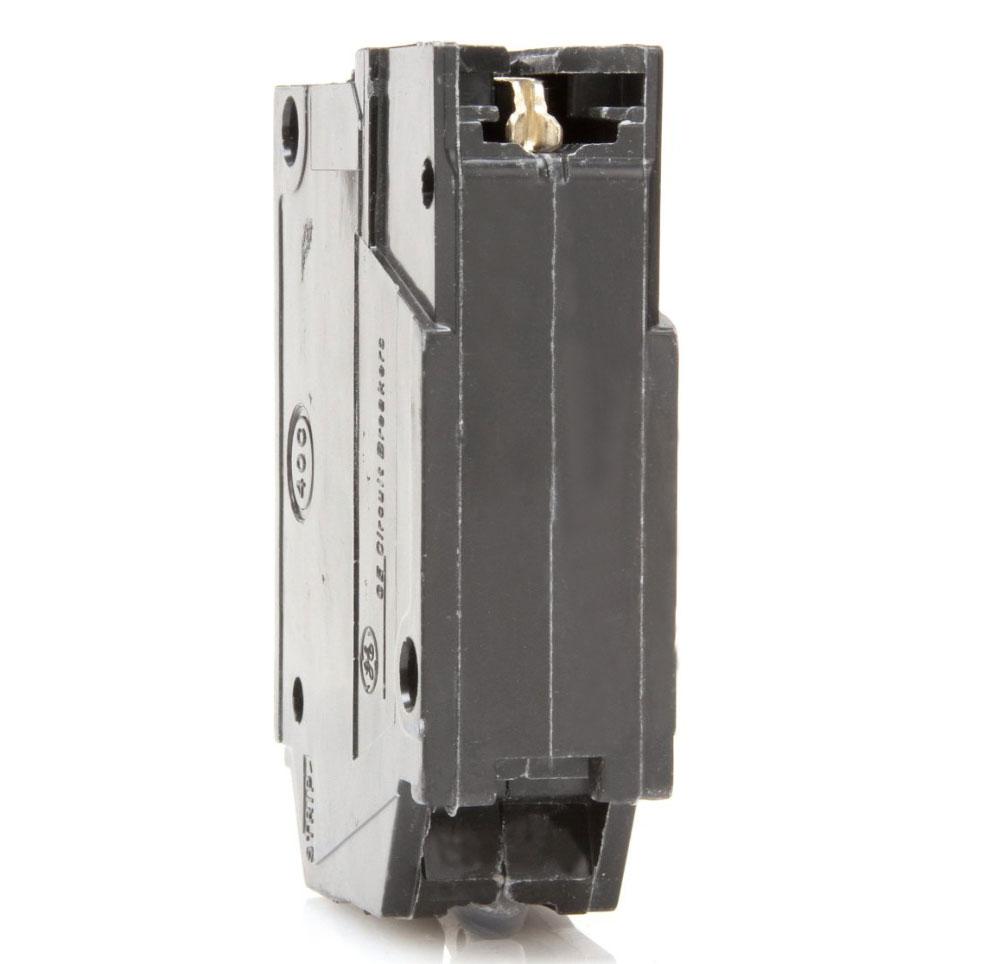

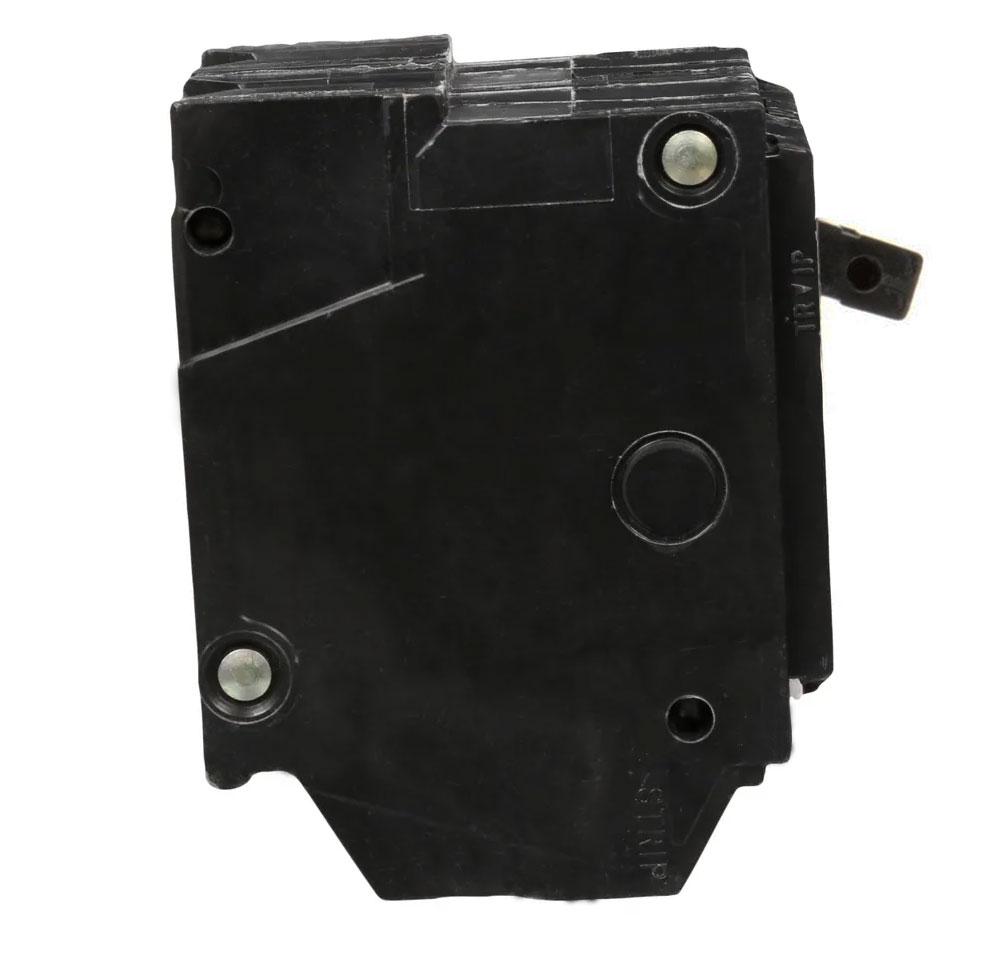

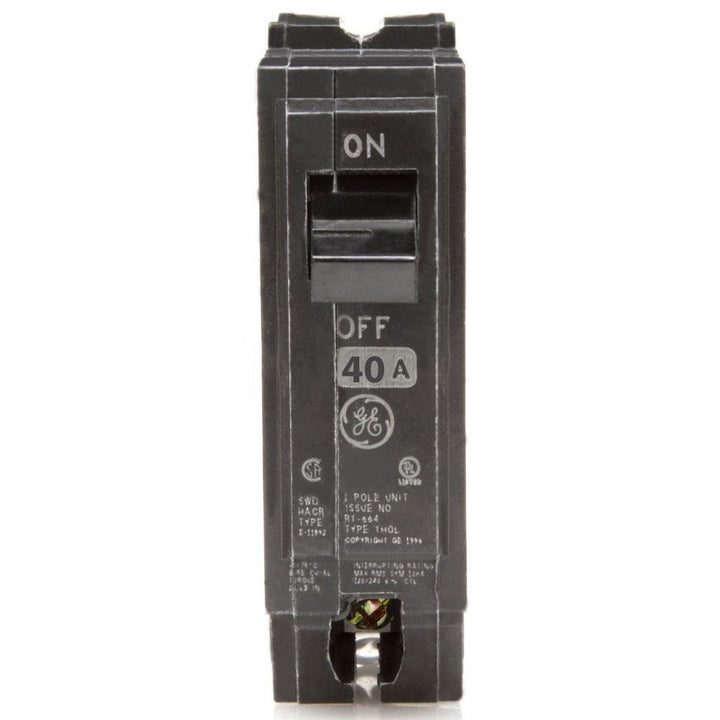

General Electric Q-Line THQL1140 Type THQL Molded Case Circuit Breaker is a reliable and compact solution designed for 120/240 VAC applications. With a 40 A amperage rating, this breaker offers high performance, ensuring maximum protection. It features a 10 kA interrupt rating and a long time/instantaneous trip function, offering precise control over circuit protection. The single-pole design makes it ideal for smaller, residential load centers while maintaining safety and efficiency. With its thermal magnetic characteristics, the THQL1140 breaker offers both long-time and instantaneous trip settings, ensuring both quick response and dependable performance in a variety of environments. Its compact size helps optimize space usage, making it a cost-effective solution for contractors and homeowners alike.
Features
- Breaker Type: Plug-in Q Line circuit breaker
- Width per Pole: 1 inch
- Design: Compact, thermal magnetic
- Mounting Type: Plug-in for load centers and lighting panels
- Available Poles: 1, 2, and 3-pole versions
- Accessories: Can be ordered with auxiliary contacts and shunt trip accessories
- HID Application: Available for use in HID applications
- Trip Mechanism: Non-interchangeable trip
- Safety Features: Quick-make/quick-break mechanism, common trip bars, easy to spot trip indication
- Feeder: 1-inch plug-in
- Wire Compatibility: Copper/Aluminum wire
Specifications
| Interrupt Rating: | 10 kA |
| Mounting Type: | Plug-In |
| Number of Poles: | 1 |
| Connection Type: | Box Lug |
| Dimensions: | 3-9/32 in H x 1 in W x 2-3/8 in D |
| Phase: | 1 |
| Temperature Rating: | 60 deg C/75 deg C |
| Trip Type: | Long Time/Instantaneous |
| Type: | Type THQL |
| Voltage Rating: | 120/240 V |
| Standard & Approvals: | UL E11592 Listed, UL 489, Federal Specification (WC-375B), HACR Rating |
| Amperage Rating: | 40 A |
| Wire Size: | 8 to 3 AWG |
