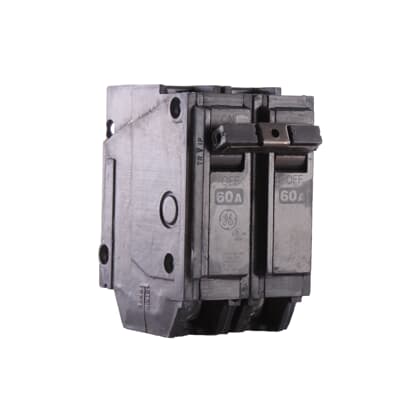

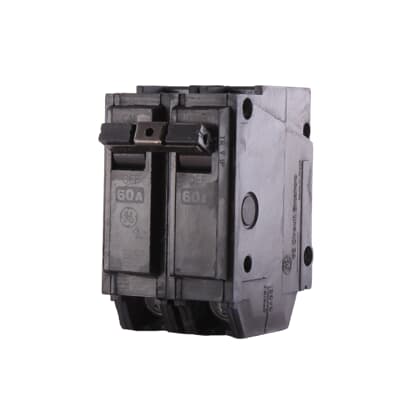

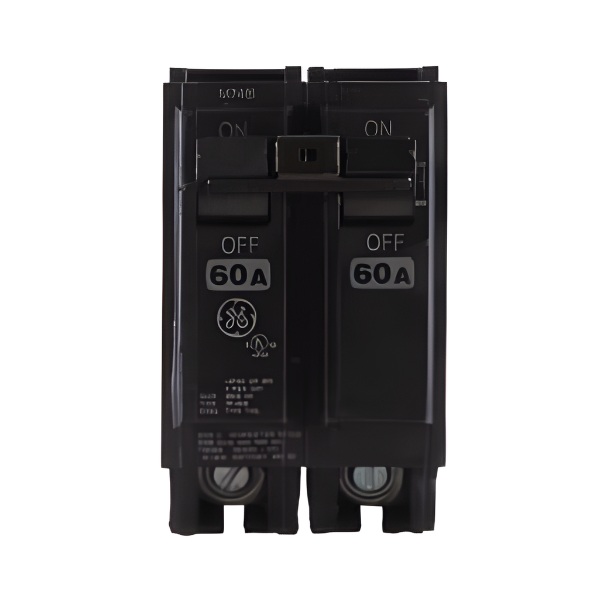

Q Line Circuit Breakers
Q Line circuit breakers are compact, one-inch wide per pole devices designed for residential and commercial applications. These thermal-magnetic breakers include plug-in versions (QL) for easy connection to load centers and lighting panels. Key features include Quick-make / Quick-break mechanisms, common trip bars, and visible trip indicators for enhanced safety. Available in 1, 2, and 3-pole configurations, they support optional accessories like auxiliary contacts and shunt trips, making them versatile for various applications, including HID systems.
Features
- LI Trip Function: Ensures reliable protection for heating, air conditioning, and refrigeration systems.
- R5 GO Schedule: Optimized for efficient performance in HVAC applications.
- Internal Common Trip Bar: Provides simultaneous disconnection for enhanced safety.
- Wire Compatibility: Supports 8 to 3 AWG aluminum or copper wiring.
- Box Lug Load Terminals: Facilitates secure and easy connections.
Specifications
| Interrupt Rating: | 10 kA |
| Mounting Type: | Plug-In |
| Number of Poles: | 2 |
| Amperage Rating: | 60 A |
| Phase: | 1 |
| Trip Type: | Non-Interchangeable |
| Type: | Type THQL |
| Voltage Rating: | 120/240 V |
| Standard & Approvals: | GSA Compliant, UL E11592 |
| Temperature Rating: | 65 to 75 °C |
| Dimensions: | 2-3/8 in (Length) x 1 in (Width) x 3-9/32 in (Height) |
| Catalog ID: | G-ETHQL2160 |
| Frame: | Q-Line |
| Wire Size: | 8 to 3 AWG |
