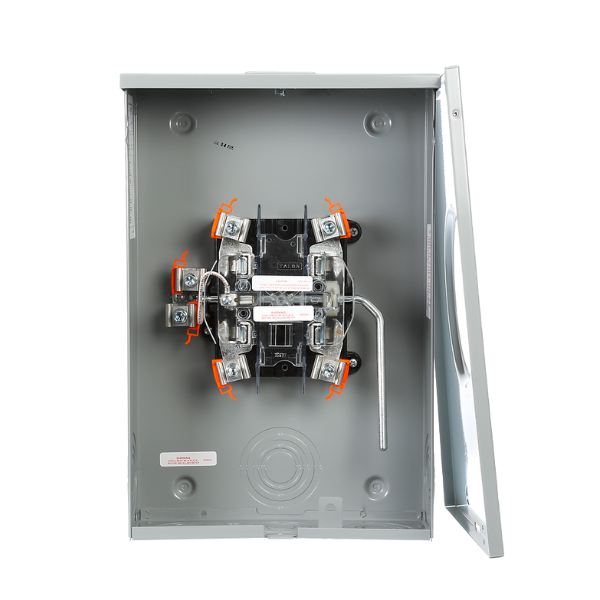

Siemens RH173CR Meter Sockets | 1 Phase - 5 Jaw

The SIEMENS RH173CR is a robust meter socket designed for reliable single-phase electrical installations. Featuring a 5-jaw configuration and a 200 Amp continuous rating, this unit is suitable for both overhead and underground service applications. Its durable steel enclosure ensures longevity, while the integrated lever bypass allows for safe meter removal without interrupting power. The design prioritizes ease of installation with ample space for wiring, making it a practical choice for various commercial settings. This meter socket embodies SIEMENS' commitment to quality and is engineered for efficient and secure power metering, offering a dependable solution for electrical systems.

Features

• Amperage & Voltage Rating: It has a 200 Amp current rating and is rated for up to 600 VAC.

• Phase Configuration: The meter socket is suitable for both 1-phase and 3-phase applications.

• Enclosure: The unit is housed in a NEMA 3R, 16-gauge light gray baked polyester powdered G90 galvanized steel enclosure, making it rain-tight and suitable for outdoor commercial and industrial installations.

• Bypass Mechanism: It features a factory-installed lever bypass switch, which allows utility personnel to bypass the meter without interrupting power, ensuring a constant current flow if the meter needs to be removed for maintenance.

• Service Type: It is designed to accommodate both overhead and underground service entry types.

• Jaws and Wiring: It is a 5-jaw meter socket with a 9 o'clock position 5th jaw knockout and lay-in lugs that accept a wide range of wire sizes, from 6 AWG to 350 kcmil.

• Cover Type: It has a ringless cover design.

• Mounting: The unit is designed for surface mounting applications.
